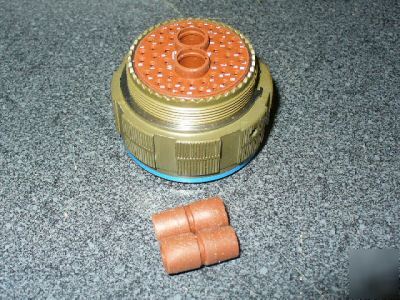

BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH - 1.234 INCHES MAXIMUM OVERALL DIAMETER - 1.875 INCHES MAXIMUM THREAD PITCH IN MILLIMETERS - 1.00 CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING THREADED DEVICE TYPE - BACK SHELL AND COUPLING FACILITY THREAD SERIES DESIGNATOR - ISO M AND DOUBLE STUB NOMINAL THREAD SIZE - 37.0 MILLIMETERS AND 1.625 INCHES THREAD TOLERANCE CLASS - 6G EXTERNAL SHELL MATERIAL - ALUMINUM ALLOY SHELL SURFACE TREATMENT - CADMIUM POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY CONTACT POSITION ARRANGEMENT STYLE - BZAE 25-46 SINGLE MATING END INSERT MATERIAL - RUBBER SINGLE MATING END (NON-CORE DATA) MISSING CONTACT TYPE AND QUANTITY - 2 COAXIAL SOCKET, 4 ROUND SOCKET, 40 ROUND SOCKET (all content is the responsibility of the poster) |
