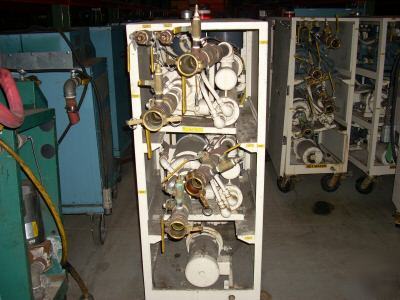

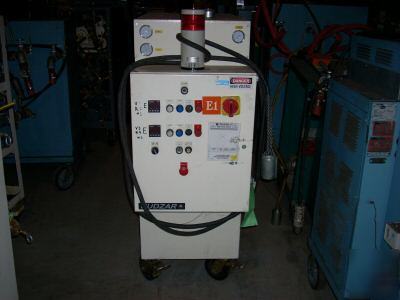

2WT-950-CSP NO. OF ZONES: TWO (2) TEMPERATURE RANGE: 50-250oF Heavy duty sheet metal cabinet 50 GPM @ 50 PSI centrifugal type Close-coupled w/mechanical seal Flange mounted foe easy service Closed Loop via 3.7 sq. ft. heat exchanger 3/8" O.D., copper "U" tube, flange mounted bundle to steel case for easy service Automatic solenoid valve cooling control 10 GPM @ 26 PSI centrifugal type pump Close-coupled w/mechanical seal 1/2 H.P., TEFC, 3500 RPM Delco 7EQ motor Pressure relief valve per zone factory set Low-pressure safety switch protection against a low fill pressure condition that could cause the pump to run dry Modular electronic solid state Dual digital readout for set point and discharge process temperature Audio/visual temperature deviation alarm ’ power cord with Arktite plug # APJ6485 Return temperature indication via local mounted thermometer "Quick-Change" sliding trays per zone For more information contact Fabian at (***) 887-8886 (all content is the responsibility of the poster) |
