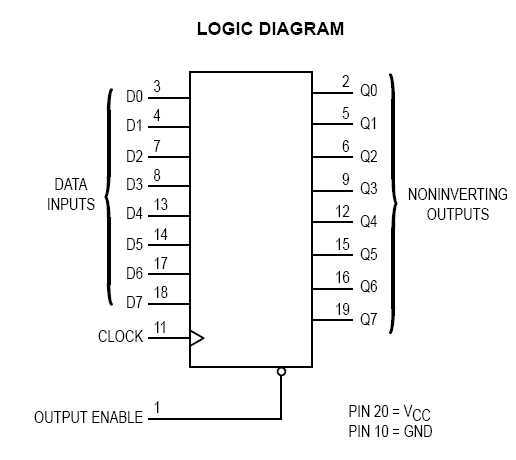

20, Octal Non-Inverting tri-state Flip Flop Click thumbnail image to view larger sized image Click thumbnail image to view larger sized image The MC54/74HC374A is identical in pinout to the LS374. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. Data meeting the setup time is clocked to the outputs with the rising edge of the clock. The Output Enable input does not affect the states of the flipflops, but when Output Enable is high, the outputs are forced to the highimpedance state; thus, data may be stored even when the outputs are not enabled. The HC374A is identical in function to the HC574A which has the input pins on the opposite side of the package from the output. This device is similar in function to the HC534A which has inverting outputs. * Output Drive Capability: 15 LSTTL Loads * Outputs Directly Interface to CMOS, NMOS, and TTL * Operating Voltage Range: 2.0 to 6.0 V * High Noise Immunity Characteristic of CMOS Devices * In Compliance with the Requirements Defined by JEDEC Standard No. 7A * Chip Complexity: 266 FETs or 66.5 Equivalent Gates * I always offer a discount on combined winning lots * Absolutely no hidden extra's or small print * Cheques drawn on a UK Bank * Cash, USD, Euro's or Sterling (all content is the responsibility of the poster) |
