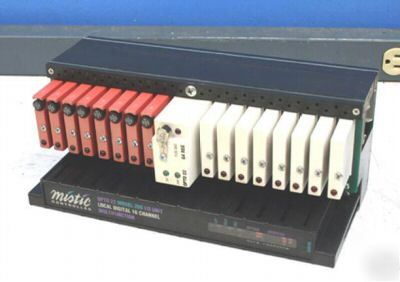

OPTO 22 G4D16L LOCAL DIGITAL 16-CHANNEL MUTIFUNCTION I/O UNIT MISTIC PROTOCOL BRAIN BOARD BRICK This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Monique Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! Opto 22 G4D16L Local Digital 16-Channel Multifunction I/O Unit Mistic Protocol Brain Board Brick with Plug-in Modules * Model Number: G4D16L/G4 REG/G4 ODC5/ G4 IDC5 * Serial Number: Quantity Available * Retail Price: $1,142.00 Total * 1 – G4D16L Mistic Controller $775.00 each * 1 – G4 REG Plug-in Module $ 175.00 each * 8 – G4 ODC5 Plug-in Modules $12.00 each ($96.00 Total) * 8 – G4 IDC5 Plug-in Modules $12.00 each ($96.00 Total) Opto 22 G4D16L General Description: * Remote Digital 16-channel Multifunction I/O Unit Mistic Protocol Opto 22 G4REG General Description: * Brick Power Regulation Module Opto 22 IDC5 General Description: * AC input modules are used for sensing ON/OFF alternating current (AC) voltage levels. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free “clean†switching. * Each module provides 4,000 Vrms of optical isolation between the field inputs and the logic output of the circuit. * Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as: Opto 22 IDC5 Specifications: * Operating Ambient: -30 to 70 Celsius * Isolation Input-to-Output: 4,000 Vrms * Output Voltage Drop: 0.4 volts at 50 milliamps * Output Current: 50 milliamps * Output Leakage With No Limit: 100 microamps at 30 VDC * Output Transistor: 30 volts breakdown Opto 22 ODC5 General Description: * DC output modules are used for controlling or switching DC loads. Each module provides 4,000 Vrms of optical isolation between the field devices and the control logic. * Typical uses and applications for DC output modules include switching the following loads. Opto 22 ODC5 Specifications: * Operating Ambient Temperature: -30 to 70 Celsius * Isolation Input-to-Output: 4,000 Vrms * Output Voltage Drop Maximum Peak: 1.6 Volts * Money wires are accepted, there is an additional $25.00 fee for bank-to-bank money wires (all content is the responsibility of the poster) |
