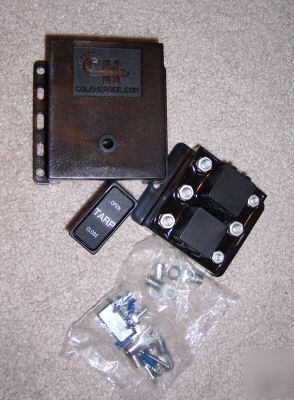

We have recently picked up a new supplier & have forward & Reverse Relay Module • Carries a heavy load current. • Fully sealed – can withstand very • Intermittent or continuous operation. A protective cover 97297 is also available. Ideal for tarp or lift applications. Also use on hoists, hatches, winches, snowplows, intake/exhaust fans, vehicle outriggers and other reversing applications. Module automatically reverses the direction of the motor when the appropriate control circuit is energized with a pulse from a control switch. Dynamic braking stops the motor when the switch returns to Off. Low-profile module saves space. Studs are securely anchored in epoxy. 2.91"× 3.51" × 1.86" H (73.9 × 91.7 × 47.2mm) • High performance silver tin oxide contacts assure long cycle life. • 70A at 12V DC intermittent, max On time 5 mins; Off time 3 mins; • Load current inrush: 150A. Pull-in voltage 7.8V max. • Low coil current draw. Coil resistance 82 • Vibration resistance: 10-55Hz. Double amplitude 1.5mm. • Environmental: -40C to 85C. Rust and moisture-resistant plastic housing. • Fully sealed to IP-67 with high strength epoxy for total moisture protection. • Tin-plated brass studs and hardware for corrosion resistance. • Dielectric strength: 500V RMS between coil and contact. • For intermittent operation, control switch should be Mom On-Off-Mom On; for continuous operation (all content is the responsibility of the poster) |
