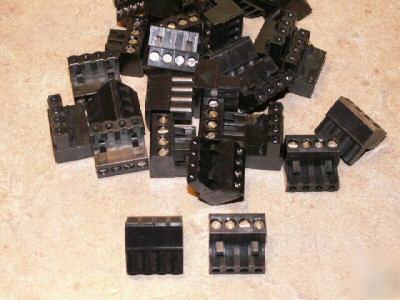

MOLEX #39860-0204, 4 Position Vertical (not right angle) EUROSTYLE 5.08MM PLUGGABLE PCB • Insulator: Polyamide, UL94V-0, black • Pressure clamp: Brass, nickel plated • Contacts: Phosphor bronze, tin plated • Header pins: Brass, tin plated • Screws: 2.5mm, steel, zinc chromate plated • Rating: UL and CSA-Class B: 15Amps@300V 12AWG UL-Class C: 10Amps@ 300V 12AWG (all content is the responsibility of the poster) |
K_Santos@oklahomaselltoday.com (Kurt Santos) for more information. All emails will be forwarded to the poster's actual email address.
