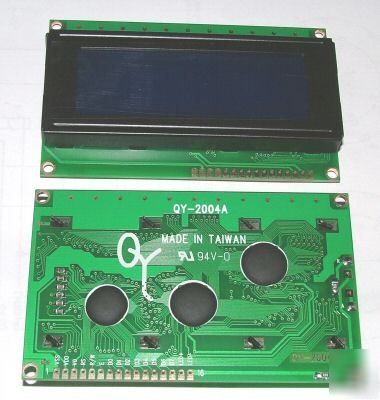

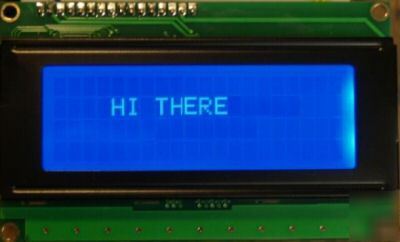

HD44780 Compatible 4 line x 20 character LCD display panel. Blue STN with white LED backlight. Pin compatible with LM005. Standard 16 pin connection interface, and capable of either 4 or 8 bit data interface. All pin connections are marked on the reverse of the panel. Supplied with specification sheet. 5V DC 5mA operation (80mA with backlight on), standard TTL compatible parallel interface. * Panel Size; - 100mm x 60mm * Bezel Size; - 100mm x 40mm * Active display size; - 70.4mm x 20.8mm * Character size; - 2.95mm x 4.75mm Ideal for microcontroller projects, or can be connected directly to PC Parallel Port for PC display. (all content is the responsibility of the poster) |
