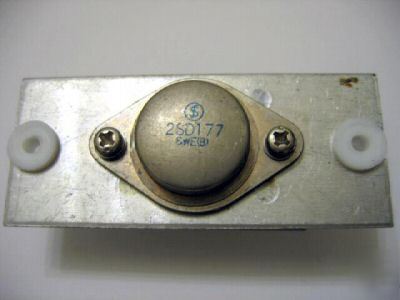

2SD177 Fujitsu NPN 10A 100W TO-3 Si Power Transistor on white Aluminum HEATSINK, BDX50 2N3773 2SD177 - Si, NPN, 120V, 10A, 100W, HFE>10, TO-3 package Equivalent to: 2SD214 BDX50 2N3773 KT868A This transistor is specially intended for high power audio and linear applications. 2SD177 is a High Power NPN transistor in a metal TO-3 envelope. I think these particular transistors were made by Fujitsu in Japan in late 1970s. The transistors come mounted in a special TO-3 socket which is mounted on white Alluminum TO-3 Heatsink. It is a small flat heatsink with the following dimentions (LxW): 7x3 cm - approximately 2.75x1.2 inches. The total cooling area of this heatsink (both sides of the plate) is 21 square cm ~ 3.25 square inches. The heatsink has 2 screw holes for mounting it on a chassis. Condition - These transistors are used, but are 100% TESTED and all work just fine. They are mounted on an original factory made (Japan) heatsinks. Please note that I have other similar Fujitsu transistors with or without heatsinks. If you are interested in items similar to this one, please let me know. EUROPE (All countries): 7...10 days ALL OTHER destinations (North and South America, Asia, Africa, etc.): 10...15 days 1. Wire transfer. I would prefer if you can send a direct wire transfer to my bank account in Bulgaria, in EUR or USD. I will provide all IBAN and BIC / SWIFT codes you will need for these transfers. I will provide full details of an intermediary bank too (only if necessary). If a bank transfer to my country is not possible or if it is too expencive, I can provide bank accounts in United Kingdom (UK), Germany and France with their respective IBAN account numbers. Full bank details will be provided upon request. 4.1. International Postal Money Orders from countries like Japan and Italy (and from other countries) that are sent from a post office and should be cashed at my local post office. These postal money orders should be sent to my Bulgarian street address. If you need more infomration, please contact me. (all content is the responsibility of the poster) |
