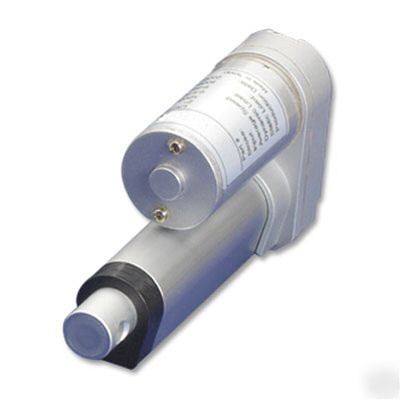

Linear actuators are gear-driven drive motors that extend the shaft with 110 lbs. of force and have a 550 lb static load. Our actuators are compatible with our remote control systems and switches, allowing for custom installation and operation in countless applications. With built-in limit switches, ACME drive system, IP 63-total dust and water resistant rating, they are ideal for automotive applications. Input Voltage is 12 VDC; recommended fuse is 10 Amp. Stroke length is 2 inches. Retracted length is 6.22 inches and extended length is 8.22 inches. Load capacity is 110 lbs; static load is 550 lbs. Speed at max load is 0.50 inches/sec. We have additional linear actuator sizes (heavy and super-duty), mounting brackets and controllers available. Check out my other items! (all content is the responsibility of the poster) |
