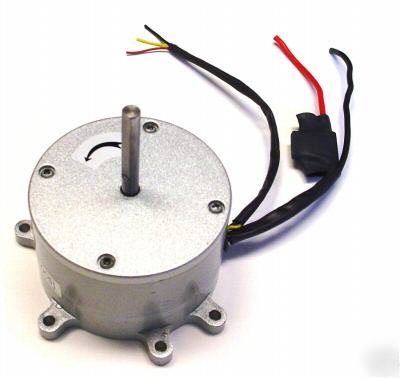

12v Brushless DC Motor Built-in Controller CCW 12vdc This is a compact 12vdc brushless motor that outputs 100W of power with a controller integrated to the motor. 2 wires for the power lines and 3 thinner wires for connecting to a potentiometer. Motor has a reverse polarity protection in case that an user accidentally wires the power lines incorrectly. When reverse polarity occurs, a fuse will burn out and all the user has to do is to replace the fuse and the motor is good as new. Motor is a Hall-sensor type. Specifications are listed below: Motor's Body Length: 2.5 inches Shaft Diameter: 8mm with one flat surface (D shaft) Housing Construction: Die-cast aluminum Mounting: Rear mount with 2-hole, 3-hole and 4-hole mounting patterns Speed at Rated Output: 2700 RPM Speed Control Type: 3 wires for 10k ohm potentiometer, yellow to wiper, red to return, black to ground Magnet Material: Rare-earth magnet (Neodymium) Protections: Current limiter, reverse-polarity, load-dump Wiring: Black to negative; red to positive (all content is the responsibility of the poster) |
