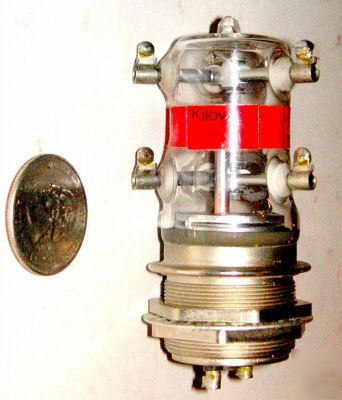

This Kilovac, part number H-16, DPDT, 12kV vacuum relay was part of a piece of equipment that I bought from the Los Alamos National Labs. The coils is 26.5 volts DC (120 ohm) with a minimum pull in of 16 volts and a drop out of 1-10 volts. Similar relays may be seen at a surplus dealer web site for $285.00 by clicking on this address: http:// /Relays/REVacRel-4.html A datasheet on Kilovac's H-16 relay may be seen by clicking here: http://relays.tycoelectronics.com/datasheets/h14_16.pdf I have tested it and the coil operates and the contacts switch properly. SEE MY OTHER LISTINGS FOR MORE CNC/Servo/Robotics/HV/Tesla/Components/Lab Equipment/Test equipment/Control/ Electrical and IC related items The free listing tool. List your items fast and easy and manage your active items. (all content is the responsibility of the poster) |
