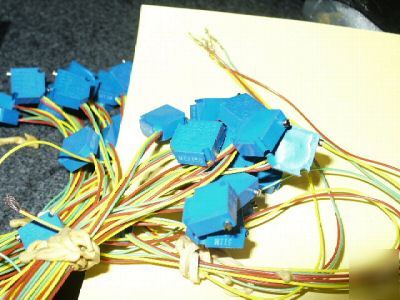

ELECTRICAL RESISTANCE PER SECTION - 50.0 KILOHMS SINGLE SECTION RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -100.0 TO 100.0 SINGLE SECTION POWER DISSIPATION RATING PER SECTION IN WATTS - 0.5 FREE AIR SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 175.0 SINGLE SECTION BODY STYLE - 32B RECTANGULAR W/MOUNTING HOLES BODY LENGTH - 0.375 INCHES NOMINAL BODY WIDTH - 0.150 INCHES NOMINAL BODY HEIGHT - 0.375 INCHES NOMINAL LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS - 0.419 INCHES NOMINAL SHAFT STYLE - 3C ROUND, SLOTTED SHAFT DIAMETER - 0.060 INCHES NOMINAL SHAFT LENGTH - 0.040 INCHES NOMINAL ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 7920.0 NOMINAL ACTUATOR TRAVEL CONTROL FEATURE - CLUTCH EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 7920.0 NOMINAL MOUNTING METHOD - UNTHREADED HOLE MOUNTING FACILITY QUANTITY - 2 MOUNTING HOLE DIAMETER - 0.062 INCHES NOMINAL TERMINAL TYPE AND QUANTITY - 3 WIRE LEAD RELIABILITY INDICATOR - NOT ESTABLISHED III OVERALL LENGTH - 0.415 INCHES NOMINAL (all content is the responsibility of the poster) |
E_Mayo@oklahomaselltoday.com (Eddie Mayo) for more information. All emails will be forwarded to the poster's actual email address.
