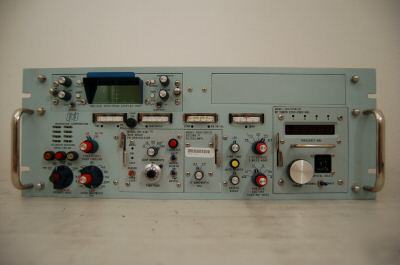

Microdyne 1100-AR Telemetry Receiver 1161-S(A) * 1161-S(A) Spectrum Display Unit * 1151-D(B) Wide Angle PM Demodulator * 1120-I(B)(2) Second IF Filter / Amplifier * 1115-VT(4)(D) RF Tuner 2200-2300 MHz The Telemetry Receiver has the following specifications and features: * 105 - 6000 MHz Frequency Range * 5..5 - 10.0 dB Noise Figure * 80 dB (min) Image Rejection * Threshold to -7 dBm Dynamic Range * ±0.001% VFO Stability per deg C * ±0.005% Crystal Stability (w/out oven) * ±400 KHz Tracking Range, plus fine tune control * 400 kHz Acquisition Range, plus fine tune control * >10,000:1 Drift Reduction Factor * 50 kHz - 800kHz Search Range * 1.5 MHz/second Search Rate * 50 kHz - 250 kHz Control Range * 10, 30, 100, 300, 1000 Hz Phase Loop Bandwidth * 5 Hz - 1.6 MHz AM Response Demodulation (all content is the responsibility of the poster) |
