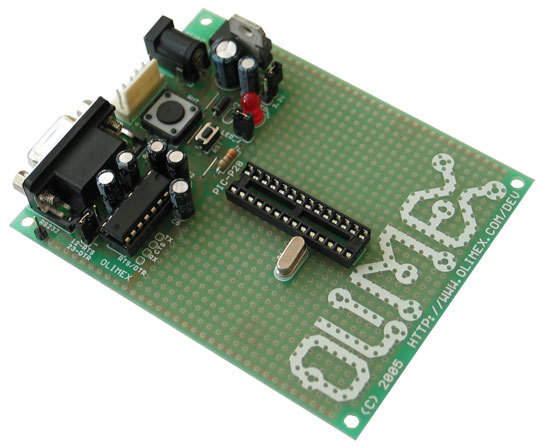

PIC P28B-20MHz 28-pin PIC Protoboard. (For PIC16F872, 873, 876, 16C773, PIC18F242, 18F252, F2320 and similar). I also have similar boards for 18 and 40 terminal PICs. Photo of Underside. There are solder pads associated with each hole. Note that these are assembled. Power requirement is 8-15 VDC. The connector is 2.1 mm ID x 5.5 mm OD, female, center positive. The 20.0 MHz crystal may easily be replaced for operation at other frequencies. * Australia, New Zealand, Singapore - $3.50. (all content is the responsibility of the poster) |
