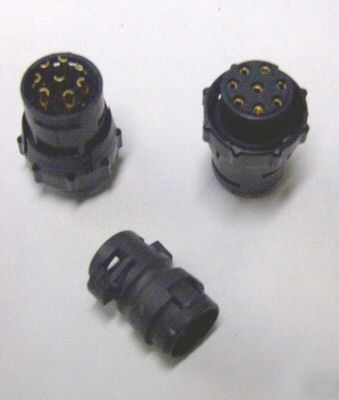

Switchcraft "EN3C8F", Female "Weathertight" Connector The price indicated is for one (1) piece each of this connector. The Switchcraft "EN", "Weathertight Series" connectors are great for the following applications: * Geothermal Instrumentation * General Industrial Electronics * Double-sealed for moisture and chemical resistance * Integral O-ring and gasket is molded onto panel housing * Panel Connector shell has a positioning "keyway" tp prevent misalignment * Abrasion-resistant thermoplastic "boot" provides strain relief, accepting cable diameter 0.195" to 0.265" * RoHS compliant per Switchcraft documentation The contacts are copper base alloy, gold-plated over nickel underplate. This eight-pin (8) connector at 600 VRMS; 6.5 Amps (#20 contacts). Waterproof to IP66 unmated, and IP68 mated. For additional information, visit the Switchcraft website. (all content is the responsibility of the poster) |
