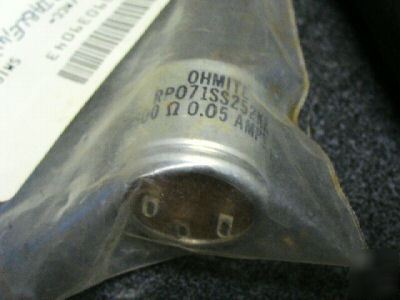

ELECTRICAL RESISTANCE PER SECTION - 2.5 KILOHMS SINGLE SECTION RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION MAXIMUM STOP TORQUE - 80.00 INCH-OUNCES MAXIMUM STARTING TORQUE - 6.00 INCH-OUNCES POWER DISSIPATION RATING PER SECTION IN WATTS - 6.25 FREE AIR SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 25.0 SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 340.0 SINGLE SECTION BODY STYLE - 1B CYLINDRICAL BUSHING MOUNTED BODY DIAMETER - 1.000 INCHES MINIMUM AND 1.094 INCHES MAXIMUM BODY LENGTH - 1.000 INCHES MINIMUM AND 1.126 INCHES MAXIMUM MOUNTING BUSHING LENGTH - 0.219 INCHES MINIMUM AND 0.297 INCHES MAXIMUM SHAFT STYLE - 3C ROUND, SLOTTED SHAFT DIAMETER - 0.124 INCHES MINIMUM AND 0.126 INCHES MAXIMUM SHAFT LENGTH - 0.328 INCHES MINIMUM AND 0.422 INCHES MAXIMUM ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 290.0 MINIMUM AND 305.0 MAXIMUM ACTUATOR TRAVEL CONTROL FEATURE - STOPS NONTURN DEVICE LOCATION - AT 6 OCLOCK NONTURN DEVICE RADIUS - 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM MOUNTING METHOD - STANDARD BUSHING SCREW THREAD SERIES DESIGNATOR - UNEF SCREW THREAD DIAMETER - 0.250 INCHES NOMINAL SCREW THREAD QUANTITY PER INCH - 32.0 TERMINAL TYPE AND QUANTITY - 2 TAB, SOLDER LUG RELIABILITY INDICATOR - NOT ESTABLISHED III OVERALL LENGTH - 1.485 INCHES MINIMUM AND 1.764 INCHES MAXIMUM III OVERALL DIAMETER - 1.000 INCHES MINIMUM AND 1.094 INCHES MAXIMUM NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR22-2 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M22-02-00231SS (all content is the responsibility of the poster) |
