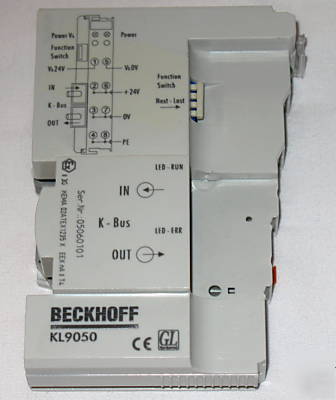

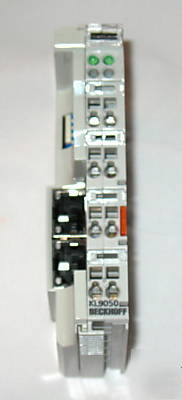

Please visit our About ME Page! KL9050 Terminal bus extension, coupler terminal The KL9050 coupler terminal replaces the Bus Coupler on a Bus Terminal block. The KL9050 is the counterpart to the KL9020. The S(F)TP cable (shielded twisted pair) is plugged into the upper socket, providing the logical connection to the Bus Coupler. The extension is fully transparent for the Bus Coupler. All Bus Terminal system functions remain unchanged. The second RJ45 socket allows the system to be extended further. A new KL9050 can be connected to the first coupler terminal. The whole system can thereby be extended by 31 stations. The supply voltage for the field level and the internal electronics can be input separately. Both levels are thereby electrically isolated from one another. In the KL9050 a 400 mA K-bus power supply unit supplies the added Bus Terminals. The internal electronics and the field level can be supplied together from a single voltage source. Three diagnostic LEDs give information about the supply voltage for each Bus Terminal block, internal and field level. The KL9050 can be used as the last coupler terminal in the system or as a bridge between two Bus Terminal blocks. You can switch between these two functions with a selector switch. The switch must be correctly positioned for the system to operate. Flags of Countries I have sold to: Flag of Qatar Image:Flag of Italy.svg Image:Flag of Germany.svg Image:Flag of the United States.svg Image:Flag of France.png Image:Flag of Canada.svg Image:Flag of Lebanon.svg Image:Flag of Mexico.svg Flag of Australia Image:Flag of the United Kingdom.svg Image:Flag of Ireland.svg Image:Flag of Singapore.svg Image:Flag of Switzerland.svg Image:Flag of Belgium.svg Image:Flag of the Czech Republic.svg Image:Flag of Greece.svg Image:Flag of England (bordered).svg Image:Flag of Sweden.svg Image:Flag of Portugal.svgImage:Flag of Brazil.svgImage:Flag of South Korea.svg Image:Flag of Thailand.svg Image:Flag of Poland (normative).svg Flag of Honduras, Central America Image:Flag of Colombia.svg Image:Flag of Iceland.svg Image:Flag of Norway.svg Image:Flag of Romania.svg Check out my other items! Be sure to add me to your favorites list! (all content is the responsibility of the poster) |
