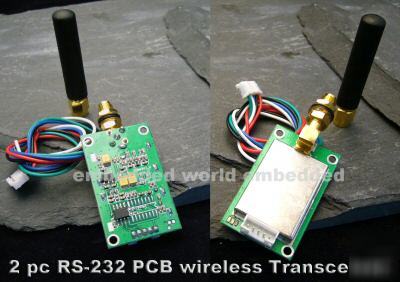

RS232 wireless PCB transceiver module 1mile range This kits contain 2 wireless RS485 transceiver PCB module and with antanna and the connection cable. Frequency: 915MHz, ( USA legal citizen band) with more then on unit, you can set up the unit to act as multi-node network, for single master, multiple slave, it's not duplex unit. Wireless RS-485 Transceiver ( part number: 862-915-4 module ) Distance: 300m ( BER=10=3@9600bps) Frequency: 915MHz, ( USA legal citizen band) Channel ( preset channel pair) 8, user selectable by the software Communication port baud rate: 1200/2400/4800/9600/19200 bps Connector to provide serial port connection and power Half duplex, single unit included receiver and transmitter. Transparent data transfer, do not need any software coveration, use as regular serial port Automatic error and noise filter Low power computation and sleep mode, power 100mW, power connect: <20mA, transmitted <100mA Power supply: TTL level 2.7-5.5V, RS485 4.5-5.5V Size: 44mm x 27mm x 10mm ( 13mm with antanna connector). (all content is the responsibility of the poster) |
