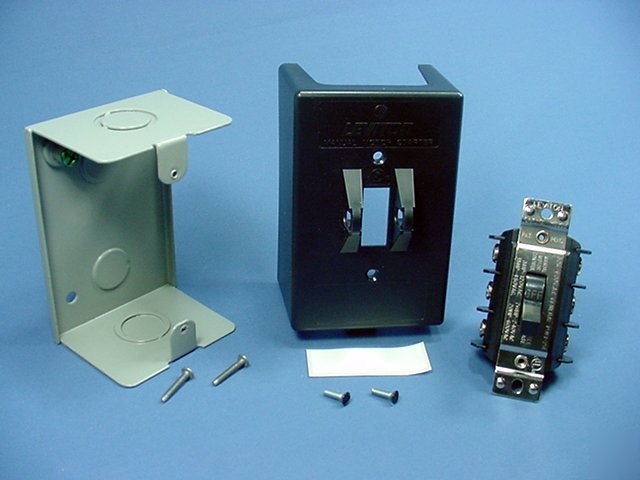

Motor Starter Switch w/Lockout 30A Leviton N1303-T Motor Starter Switch w/Lockout 30A Leviton N1303-T Industrial Specification Grade 3HP@120V, 7.5HP@240V, 15HP@480V, 20HP@600V Leviton N1303-T enclosed manual motor starting switch without overload protection. It is Industrial Specification Grade, back & side wired, 3-pole, single throw, non-grounding, 30A 3-phase 600V Max. It is rated: 3HP @ 120VAC; 7.5HP @ 240VAC; 15HP @ 480VAC; and 20HP @ 600VAC. Each is individually packaged with instructions. Features include: * NEMA Type 1 enclosure - metal back and plastic front with lockout tabs * Positive-contact design enhances fast-make/slow-break * Silver-alloy contacts for maximum conductivity and service life * Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal * Oversized #10 triple-combination terminal screws are vibration resistant * All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing * Insulating barrier between terminals provide isolation from each phase * Nickel-plated brass mounting yoke for superior corrosion resistance * Large toggle provides positive actuation, even with gloved hand This is New Old Stock and is returnable for any reason. (SKU #LN1303-T00-EA; 1.14 Pounds) Need Wallplates? Click here to see color matching wallplates for this device. Need a different style or color? Click on the following links to see larger lots and related products: * Locking Plugs & Receptacles Motor Starter Switch w/Lockout 30A Leviton N1303-T Motor Starter Switch w/Lockout 30A Leviton N1303-T Money Back Guarantee & Return Policy: * All items are guaranteed to be as described and in good working order unless stated otherwise in the description. If not we will refund/replace at our option. (more on our guarantee and return policy.....) * We are liquidators; we are not dealers or distributors of the items that we sell; We can make no guarantee that warranties on these items will be honored by the manufacturer; however, you can always rely on our 30-day money back guarantee. * We use a single set of photos for most items. Packaging may differ from photo, however what you receive should be accurately represented by what is in the photo. If it is not we will pay for its return. * Contact Information: Our Email address is: sheree.booker@oklahomaselltoday.com . We respond to all e-mails. We have a full return policy so there is no reason for us to avoid your e-mails if you are having a problem. If you have not heard back from us be sure to check your junk e-mail folder. (more on contact information including addresses.....) (all content is the responsibility of the poster) |
