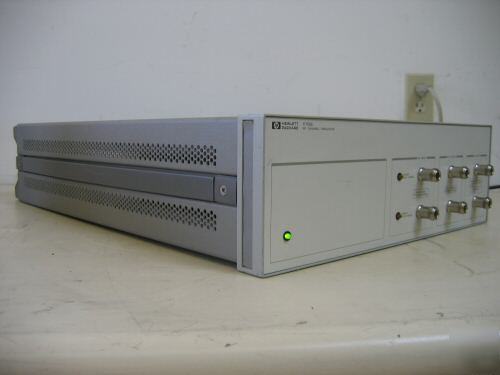

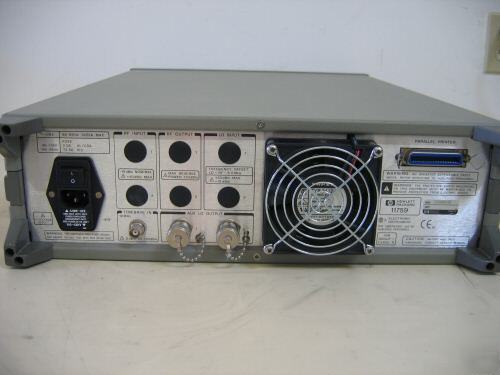

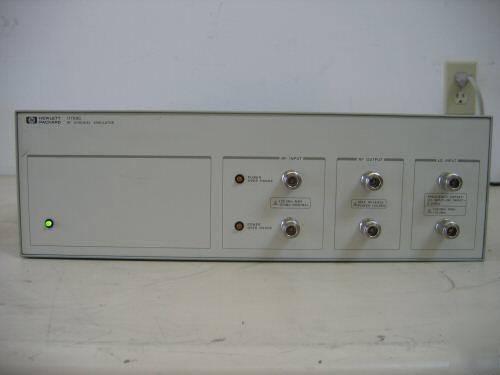

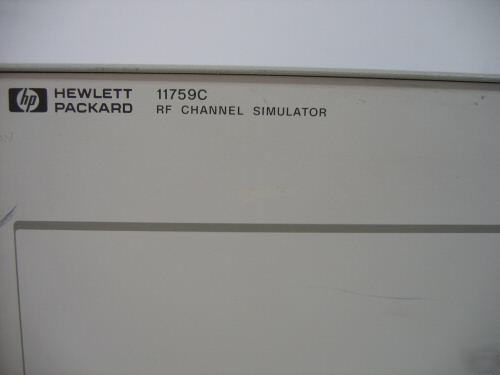

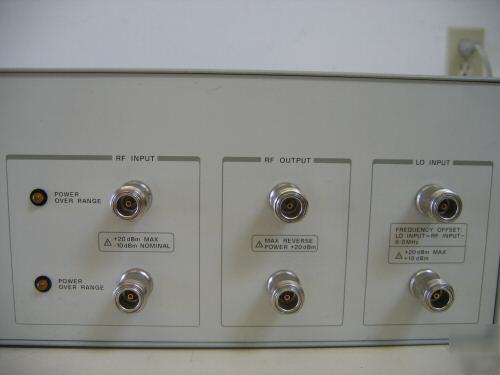

HP Agilent 11759C RF Channel Simulator, Multpath * Description: The HP Agilent 11759C RF Channel Simulator is used for multipath fading simulation for mobile radio systems; GSM, NADC, JDC, DCS1800, MCA, CT2, PHP(JDCT) and DECT. The primary features and specifications of the HP 11759C are: * 40 MHz to 2.7 GHz Frequency Range * Doppler to ± 425 Hz (>500 km/ at 900 MHz) * Rayleigh/Rice Statistics * Delay interval to 189 µ with 1 ns resolution * 12-Bit processing for low noise floor/distortion * Independent RF Channels: 2 of 3 paths each * RF Input/Output Frequency Range: 40 to 2700 MHz * RF Bandwidth (1 dB): &062;6.0 MHz typically * Path Insertion Loss: Typically 24 dB ±3 dB * LO Input Frequency Range: RF input frequency less 6 MHz * The HP 11759C RF Channel Simulator has simulates the fast and slow fading, delay, dispersion, and Doppler effects found in older mobile radio cordless telephone environments. The 11759C is designed to test digital wireless radio systems with occupied bandwidths up to 6 MHz under RF multipath conditions. * Working Condition: Presumed Good but Untested * Other Comments / Notes: Although not pictured, we will include a copy of the Simulation Software with this HP 11759C. * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (all content is the responsibility of the poster) |
Tammi_Head@oklahomaselltoday.com (Tammi Head) for more information. All emails will be forwarded to the poster's actual email address.
