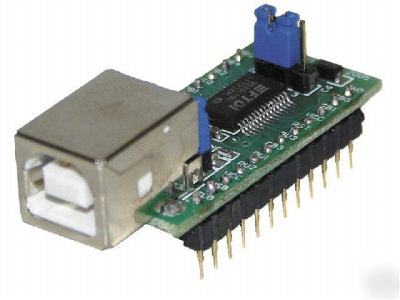

FTDI UM232R USB-Serial UART Development Module The UM232R module is a USB - Serial UART (TTL) development module for the FT232R IC device. The UM232R is supplied on a PCB designed to fit a 24 pin DIP socket, and provides access to all UART and CBUS interface pins of the FT232R device. Device detected by Windows as standard USB COM port. The UM232R can be configured as either USB bus-powered or self-powered and also supports 5V or 3V level interface IOs via two sets of jumper setting pins. Full hardware handshaking is supported and the UM232R can communicate at up to 3MBaud at TTL/CMOS levels. Ideal for rapid prototyping and development of FT232R designs, an attractive quantity discount structure also makes this module suitable for incorporation into low/medium volume finished product designs. The UM232R plugs into a standard 24-pin 0.6in wide DIP socket. Ideal for use with AVR, PIC and other types of controllers. • USB to RS232 / RS422 / RS485 Converters • Upgrading Legacy Peripherals to USB • Cellular and Cordless Phone USB data transfer cables and interfaces • Interfacing MCU / PLD / FPGA based designs to USB • USB Audio and Low Bandwidth Video data transfer VIRTUAL COM PORT DRIVERS for : • Windows 98, 98SE, ME, 2000, Server 2003, XP. Typical block-diagramm of connection MCU throuch UM232R to USB Additional information (documentations, drivers and other) about UM232R and FT232RL can be downloaded from official FTDI web page FTDI-FT232R Oficcial price from FTDI for this module is £11.10 (approximately $22.5) - please see FTDI online shop. 2) Bank transfer (bank account in Germany) ___________________________________________________________________________ Attenzione, si avvertono gli eventuali compratori italiani, che al recapito del pacco, si dovranno pagare altri 8..13,44 EURO di spese doganali. (all content is the responsibility of the poster) |
