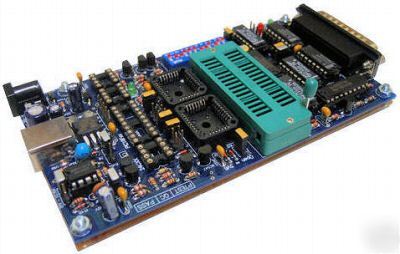

Newest Version PCB6.0 Willem EPROM Programmer ~ Lates Software 0.98D5 ( NEW!!! The Version PCB6.0 design by an engineer who developed (Original Version : (Willem EPROM Programmer PCB3B Standard and Universal)) and developed software 0.98D2 / 0.98D5 (Now!! Download Free 0.97ja) /0.97j / 0.97i+ / (0.98i more Copy Software version) / 0.97i / 0.97h / 0.97g ) This Version PCB6.0 is new design from the oirginal engineer who developer software 0.98D5 and design PCB3b. It means this PCB fully support software 0.98D5. It doesn't like other saller who just reverse engineering our PCB3b to PCB5 or PCB 5.5 Pro for be equal to Version PCB6.0. Because software version 0.98D5 supports only Version PCB6.0 that the software version 0.98D5 maybe not STABLE whit the PCB reverse engineering Willem Eprom programmer Version PCB6.0 can be use for - Upgrading, Programming BIOS chip, Repairing PC motherboard BIOS chip. - VCD, DVD, Color TV, Copier, Fax machine, Printer main board maintaining or repairing. - Car memory device code reading, writing - MCU development: programming for MCS-51 series, AVR series and PIC series MCU. - Programming support for over 1500 IC devices, includes EPROM , EEPROM , FLASH , PIC , AVR , MCS-51 , MCS-48, 27Cxx , 28Cxx 28Fxx , 29Fxx , AT29Cxxx , 24Cxx , 93Cxx , PIC16xxx , DS12xx , AT89Cxx , AT89Cx051 , AT25xxx , AT90Sxxx , EPROM16bit , 29Fx00 , 28Fx00 - Additional support DIP32 to PLCC32 and PLCC Firmware HUB/LPC on board. - Special it is able to support the chip 29/39/49LVxxx (Low Voltage 3.3V) - Use power supply from a USB port or DC Adapter(9-12 VDC) by setting jumper. - Faster than Willem EPROM Programmer PCB3B , PCB3B+ (Standard/Universal) and Enhanced Willem about 50%. It also programs faster than Willem EPROM Programmer (PCB3.5C) , (PCB4C) about 20%. For full capacity, it should be used with with software willem Version 0.98D5 ( bundle in CD-Rom ). - It can set changes to be PCB3B or PCB4.5C by using jumper setting (when wish use Software of the ordinary) - The Version PCB6.0 can unprotect the AM29F040B flash memory chip. - The back of the circuit board is covered by a plastic board that is neat and protects board from short circuiting. -Windows based programming software support 98 / ME / NT / 2000 / XP - Latest !! Software willem PCB45C version 0.98D5 can run on The hardware PCB3.5/PCB4C/ PCB4.5C only. -Software willem for PCB45C version0.98D5 support for over PICs microchip more Software 0.97ja. . One Willem EPROM Programmer Version PCB6.0 with a 32 pin ZIF socket with Gold contacts. . One Software Support CD-ROM -( 0.98D5) Support CHIPS (EPROM,EEPROM,FLASH,I2C,PIC,MCS-51,AVR, 93Cxx, ISP) 27C64 , 27C128 , 27C256 , 27C512 , 27C010 , 27C020 , 27C M27C1001 , M27C2001 , M27C4001 27C080 (A19) , M27C801 , M87C257 2716(Vpp25V) , 2732 , (adapter DIP24) 2764 , 27128 , 27256 , 27512 , 27010, Vpp12.5V (21Vpp Modify Circuit) 28C65 , 28C64 , 28C128 , 28C256 , 28C512 , 28C010 , 28C020 , 28C040 (Adapter or Jumper) 28C16,XLS2816 (DIP24) 28F64 , 28F128 , 28F256 , 28F512 , 28F010 , 28F020 MX26C1000 , MX26C2000 , MX28F1000 , MX28F2000 Am28F256A , Am28F512A , Am28F010A , Am28F020A (New command erase/prog.) i28F001BX , 28F004 , 28F008 , 28F016 29F64 , 29F128 , 29F256 , 29F512 , 29F010 , 29F020 , 29F040 , 29F080 29F001 , 29F002 , 29F004 , 29F008 , 29F016 , 29F032 24C02 , 24C04 , 24C08 , 24C16 , 85C72 , 85C82 , 85C92 24C32 , 24C64 , 24C128 , 24C256 , 24C512 <- Data 8bit -> (pin 6 ->ORG. [Schematic connect to GND]) 93C06 , 93C46 , 93LC46 , 93C56 , 93C57, 93C66 , 93C76 , 93C86 (8bit) , AT59C11 , AT59C22 , AT59C13 CAT35C102 , CAT35C104 , CAT35C108 (pullup pin7) <-Data 16bit-> (pin 6 ->NC [No Connect]) 93C06A , 93C46X , 93C56 , 93C66 , 93C76 , 93C86 (NS) 16C84 , 16F84 ,16F84A , 16F627/16F628 12C508/A , 12C509/A , 12CE518 , 12CE519 , 16C505 16C620 , 16C621 , 16C622 , 16CE623 , 16CE624 , 16CE625 , 16C710/711 16F870 , 16F871 , 16F872 , 16F873 , 16F874 , 16F876 , 16F877 PIC16F873A , PIC16F874A , PIC16F876A , PIC16F877A PIC12F629 , PIC12F675 , PIC16F630 , PIC16F676 , PIC12F635 , PIC12F683 , PIC16F636 , PIC16F684 , PIC16F688 PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716 -Add microchip 14bit,12bit OTP PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782 PIC12F629/675 , PIC16F630/676 , PIC12F635/683 , PIC16F636/684/688 , PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716 PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 , PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A , PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 , PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782 -Add PIC microchip 12bit (FLASH memory) PIC12F508/509 , PIC10F200/202/204/206 , PIC16F505 , PIC16F54/57 PIC18F242 , 18F248 , 18F252 , 18F258 , 18F442 , 18F448 , 16F452 , 16F458 PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320 PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720 PIC18F2331 , 18F2431 , 18F4331 , 18F4431 PIC18F6525 , 18F6621 , 18F8525 , 18F8621 PIC18F6585 , 18F6680 , 18F8585 , 18F8680 PIC18F2439 , 18F2539 , 18F4439 , 18F4539 PIC18F6410 , 18F8410 , 18F6490 , 18F8490 PIC18F2410 , PIC18F2420 , PIC18F2455 PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585 PIC18F2610 , PIC18F2620 , PIC18F2680 PIC18F4410, PIC18F4420 , PIC18F4455 PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585 PIC18F4610 , PIC18F4620 , PIC18F4680 Add Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676) Add Edit config at address 0x2008,0x2009 (PIC12F635/683 , PIC16F636/684/688 , PIC16F785) PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767, PIC16F74 PIC16F872 , PIC16F876 , PIC16F877, PIC16F876A, PIC16F873A, PIC16F819 PIC16F84 , PIC16F84A , PIC16F628, PIC16F628A, eprom PIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431 AT29C256 , AT29C512 , AT29C010A , AT29C020 , AT29C040 , AT29C040A W29EE512 , W29EE011 , W29EE012 , W29C020(128) , W29C040 PH29EE010(W29EE011) ASD AE29F1008 (AT29C010), AE29F2008 (AT29C020) Ver 0.992 up(DOS). Can run under win9x (disable prog. CPUIdle or CPUCool) Command seq. 5555/AA, 2AAA/55, 5555/A0 AT49F512 , AT49F010 , AT49F020 , AT49F040 SST39SF010 , SST3S9F020 ,SST39SF040 AT49F001 , AT49F002 , AT49F008A Command seq. 555/AA, 2AA/55, 555/A0 Am29F512 , Am29F010 , Am29F020 , Am29F040 , HY29F080 Serial Peripheral Interface (SPI) [Atmel] AT25010 , 020 , 040 (A8-A0) AT25080 , 160 , 320 , 640 , 128 , 256 (A15-A0) [ST] W95010....256, Microchip 25x010 - 25x640 25C080 , 25C160 , 25C320 , 25C640 , 25C128 , 25C256 , 25C512 - CAT64LCxxx (16bit DATA IN/OUT) use Socket 93Cxxx CAT64LC010, CAT64LC020, CAT64LC040 AT28C256 , AT28C010 , AT28C040 DS1220 , DS1225Y , DS1230Y/AB , DS1245Y/AB , DS1249Y/AB 6116 , 6264 , 62256 , 62512 , 628128 W27E512 , W27E010 , W27C010 , W27C020 , W27C040 SST27SF256 , SST27SF512 , SST27SF010 , SST27SF020 Vcc = 3.3-3.6V SST37VF512 , SST37VF010 , SST37VF020 , SST37VF040 Support CHIPS : Use together with Adapters AT89C51 , 52 , 55 , AT89LV51 , 52 , 55 AT89S8252 (8K+2K) , AT89S53 , AT89LS8252 , AT89LS53 AT89C1051 , AT89C2051 , AT89C4051 (20pin) AT89C51RC (32KB) , AT89C55WD (6.2V) i8xC51 , i8xC52 , i8xC54 , i8xC58 (tWP = 100uS*25 Pulse) (read , write , erase , verify , , Lockbits , Fusebits) [Flash memory/EEPROM] 90S2333 , 90S4433 , 90S4414 , 90S8515 , 90S4434 , 90S8535 Function Lockbit read AT90S2313 Errata Sheet.pdf P8048AH , P8049AH,P8050AH , P8042AH Vea = 12V P8748 , P8749H , P8742H Vea = 18VEPROM (read/verify/Program) D8748 , D8749 , D8742 , D8741 , D8742 Vea = 18V Am29F400 , Am29F800 , 29F160 , 29F320 (read , write byte mode) HY29F200 , HY29F400 , HY29F800 , AT49F2048A , AT49F4096A , AT49F8192A i28F200 , i28F400 , i28F800 , i28F160 (TSOP 48) 27C1024 (27C210) , 27C2048 (27C2002) , 27C4096 (27C4002), by use Resister pull up Data Bus (0xFF) , A0 select low or high byte) EPROM 16bit (DIP42) (4-32Mbit) M27C400(DIP40) , 27C800 , 27C160 , 27C322 by use Resister pull up Data Bus (0xFF), A0 select low or high byte) 29LV200 , 29LV400 , 29LV800 , 29LV160 , 29LV320 (read,write byte mode) Adapter Firmware Hub/LPC (PLCC32) (PP mode) (3.3V) 82802AB , 82802AC , AT49LW040 , AT49LW080 SST49LF002A , SST49LF003A , SST49LF004A , SST49LF008A W49V002FA , W39V040FA- LPC flash MBM29LV002TA/BA , MBM29LV004 , MBM29LV008 , MBM29LV017 , MBM29LV080 MBM29F002ST/SB , MBM29LV016 , Am29LV004 , Am29LV002 , Am29LV008 MBM29F017A , MBM29F016A , MBM29F080 , 28F008SA , 29F004S5 Am29F080 , Am29F016B , Am29F016 , Am29F017B , Am29F065MU - Software Version 0.98D5 [ ( PBC45 (0.98D5 ) ] ( Latest update ) . Support Hardware Willem EPROM Programmer PCB4.5C only - Software Version 0.97j ( update 06/Nov/2004 ) . Support Hardware Willem EPROM Programmer all version - Software Version 0.98i or (0.97i) ( update 31/July/2003 ) . Support Hardware Willem EPROM Programmer all version Software Version 0.98D5 [ ( PBC45 (0.98D5 ) ] ( Latest update ) - Add device ID,Menu,Table index :28F002/004/200/400BX-x (TSOP40A,TSOP48 8/16bit, PSOP44) Version 098D5 - Fixed Program Config PIC16F8x, PIC16F62x, PIC16F87x (Test on PIC16F84, PIC16F84A, PIC16F627/628/628A, PIC16F872/877) - Fixed Timming Programming PIC12C5xx (Run on Windows XP) Test on PIC12C509JW UV erase), PIC16C505JW (UV erase),PIC12F509 (select device = PIC12C509A) PIC12F629/675 , PIC16F630/676 , PIC12F635/683 , PIC16F636/684/688 , PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716 PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 , PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A , PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 , PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782 -Add PIC microchip 12bit (FLASH memory) PIC12F508/509 , PIC10F200/202/204/206 , PIC16F505 , PIC16F54/57 PIC18F242 , 18F248 , 18F252 , 18F258 , 18F442 , 18F448 , 16F452 , 16F458 PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320 PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720 PIC18F2331 , 18F2431 , 18F4331 , 18F4431 PIC18F6525 , 18F6621 , 18F8525 , 18F8621 PIC18F6585 , 18F6680 , 18F8585 , 18F8680 PIC18F2439 , 18F2539 , 18F4439 , 18F4539 PIC18F6410 , 18F8410 , 18F6490 , 18F8490 PIC18F2410 , PIC18F2420 , PIC18F2455 PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585 PIC18F2610 , PIC18F2620 , PIC18F2680 PIC18F4410, PIC18F4420 , PIC18F4455 PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585 PIC18F4610 , PIC18F4620 , PIC18F4680 - Add Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676) - Add Edit config at address 0x2008,0x2009 (PIC12F635/683 , PIC16F636/684/688 , PIC16F785) PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767, PIC16F74 PIC16F872 , PIC16F876 , PIC16F877, PIC16F876A, PIC16F873A, PIC16F819 PIC16F84 , PIC16F84A , PIC16F628, PIC16F628A, eprom PIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431 - Fixed Write/read/verify EEPROM 18F4550 - Fixed Bug program 18Fxxx run on Windows XP/2000 (test PIC18F4539 , PIC18F2680 , PIC18F2431 , PIC18F258 , PIC18F4220 , PIC18F4550) - Add find OSCCAL 10Fx00, 12F50x, 12F6xx (test PIC10F202, 12F509, 12F675) - Fixed Programm AT89C8253 (Want modify Adapter MCS-51) (test on AT89S8253) Software Version 0.97j ( update 06/Nov/2004 ) . Fixed parallel programming AT89Cxx . Fixed display lockbit./SPI AT89S8252/53 . Test erase/write/verify/lockbit/SPI/read_lockbit on Chip . AT89C51,AT89S52,AT89S8252,AT89C1051U,AT89C2051,AT89C4051,AT89C55WD(setting Vcc = 6.2V for erase Data/lockbit) . Add list 16bit mode 29F100/200/400/800/160/320 ** adapter 16 bit no support temp. unprotect sector . Fixed FWH/LPCh size W49V004/040 . Fixed bug version 097i+ (27/05/2004) . Enable programming Flash memory 16 bit mode . Fixed program AT89Cxx ver. 097i+ . Enable unprotect AM29F040 die 98403/98406, 98401 . Test on chip AM29F040 die 98403/98406 . Add program CHIP SMD 24Cxx, 93Cxx use connect ICSP . Fixed bug version 097i+,98i program 29C5100x . Add fast programming FWH/LPC (SST,Winbond) Software Version 0.98i or (0.97i) ( update 31/July/2003 ) . Add Test H/W address A19 -> A23 . Change Programming Flash 29/39/49xxx check DQ5 complete program . Fixed bug program 29Cxxx sector 0 (sector programming) . Test on W29C011A, SST29EE010, AT29C020, AT29C040A, AE29F1008, AE29F2008 . Add Single Pulse Byte/Word program chips ATMEL . If chip support . Fixed Device ID( 0x7C ) P28F002BC ( Test on P28F002BC DIP40 ) (all content is the responsibility of the poster) |
