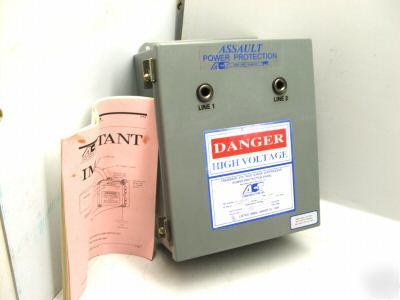

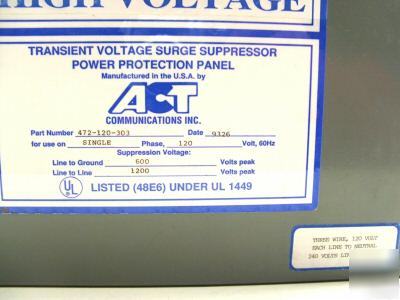

New, in the box, Transient Voltage Surge Suppressor Power Protection Panel from Act Communications, Assault 472, P/N 472-120-303. For use on single phase, 120 Volt, 60 Hz suppression voltage. Line to ground: 600 V peak, Line to Line: 1200 V peak. 3 wire, 120 V each line to Neutral / 240 V Line to Line; Unit is mounted in a steel NEMA - 12 Enclosure, Class J (JHC-40), Dimensions: 12"H x 10"W x 5.5"Deep. It is designed to protect sensitive solid state equipment downline from high energy transients. State of the are equipment is more sensitive to transient damage. The 472 was designed by fusing the best features of two mature and proven technologies. The result is a product with the speed seen in the zener diode, or MOV technology, and the strength of the spark gap or gas tube. It is installled in a shunt configuration. Under normal conditions it is transparent to the circuit, with only a nominal amount of current being drawn to illuminate the front panel indicators. Independant of load conditions.
