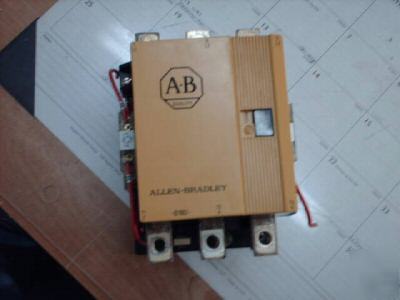

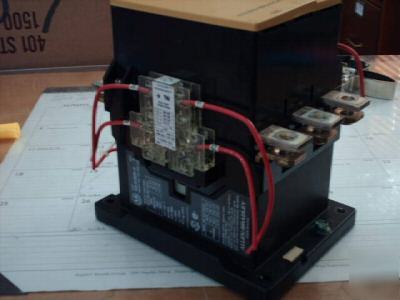

(st 39) CAT #: 100-B180N*3. Series A. AC3: Ie = 180A max. AC3 kW ratings: 220V, 45kW. 380/415V, 90kW. 500V, 110kW. 660V, 110kW. IEC 158-1. BS 5424. VDE 0660. Ui=660V. Ith=225A. AC1:Ie=225A. Max HP ratings: 3 PHASE. 220V, 60HP. 230V, 60HP. 460V, 150HP, 575V, 150HP. The auxilliary contact on one side is CAT #: 195-GA02. Series A. IEC 337-1 VDC 0660. Ui=660V Ith=10A. AC11: 12-120 Ue~, 6Ie. 220-240 Ue~, 3Ie. 380-480Ue~, 1.5Ie. 500-600 Ue~, 1.2 Ie. The auxilliary contact on the other side is CAT #: 195-GA10. Series A. IEC 337-1 VDC 0660. Ui=660V. Ith=10A. AC11: 12-120 Ue~, 6Ie. 220-240 Ue~, 3Ie. 380-480 Ue~, 1.5 Ie. 500-600 Ue~, 1.2 Ie. NEMA/EEMAC A600/P300. This is fresh take out from a recently closed plant. If you have any questions, feel free to ask them.
