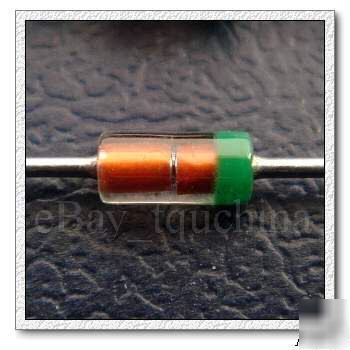

1N60 DO-35 SCHOTTKY BARRIER DETECTOR DIODE FOR ELECTRONIC BUILD, REPAIR, CRYSTAL RADIO DIY The item we are selling in this list is the 1N60 schottky barrier detector diode. This N-form schottky technology based 1N60 detector diode has the better performance than the traditional point-contact based Germanium detector diode. It is wide range used for the FM detecting and radio AM detecting, in the meantime, it is very perfect for the other electronic build, repair and crystal radio DIY etc. 1N60 N-form schottky barrier detector diode. Small size DO-35 axial glass package. 100% replace the traditional point-contact Germanium 1N60 detector diode with the better performance for the detecting application. High reliability, low reverse current and low forward voltage. Construction: silicon epitaxial planar. Repetitive peak reverse voltage: VRM (PRV) = 40V. Peak forward surge current: Ifsm = 150mA @ Tp<1s. Forward continuous current: IF (AV) = 30mA @ Vf=0.5V and If=1.0mA. Forward voltage: Vf=0.32V @ If=1mA. Reverse current: Ir=0.1uA @ Vr=15V. Junction capacitance: Cj=2.0pF @ Vr=1V and f=1MHz. Reverse recovery time: Trr=1.0ns @ If=Ir=1mA, Irr=1mA and Rc=100Ohm. Storage temperature range: Tstg = -65C to +125C. Especially designed for FM detecting, radio AM detecting, low current rectification and high speed switching. Perfect to use this 1N60 diode to build the FM/AM radio detectors, HAM projects, crystal set projects and other electronic projects or repair etc. The order from this list is for the 1N60 diode only, will not includes any other items in the package. The 1N60 diode we are selling in this list is full new never used, and QC pass is guaranteed. The packing list includes the following items: 100pcs 1N60 diodes. The 1N60 diode we are selling in this list is the new N-form schottky barrier detector diode, it is not the traditional point-contact Germanium based detector diode, but has the better performance, can be used to 100% replace the traditional Germanium 1N60 diode on the detecting applications. Please refer to the datasheet and the application notes for the more detailed information about this 1N60 diode, we don't provide any technical support about how to use this 1N60 diode. (all content is the responsibility of the poster) |
