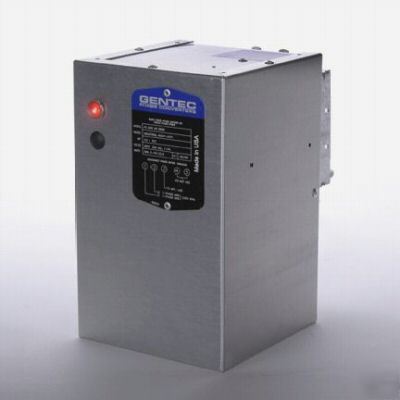

1/3 - 3/4HP Static Phase Converter Rated: Industrial Heavy Duty GENTEC American Rotary is the manufacturer and distributor of the largest selection of phase converters! Static phase converters, rotary phase converters, CNC phase converters, and digital phase converters. * Aggressive Capacitive Starting Common uses include: drill presses, milling machines, bandsaws, mixers, table saws, bench grinders, meat grinders, sanders, and any other light to moderate starting and running loads! DO NOT USE STATIC PHASE CONVERTERS with Ovens, Heaters, Lasers, CNC, Battery Chargers, Resistive or Rectifier loads, 2 or 3 speed motors, Lathes (Non-clutched), Pumps, Fans, Refrigeration Equipment, Unattended Equipment, Welders, Air Compressors, Frequent-start loads (more than 6x's/hr), Hard-Starting or multiple motor applications, or any equipment that will be run at more than 2/3 rated horsepower. Please call toll free 1-(***)-743-6832 for sizing assistance! Also Available: Rotary Phase Converters are available in our store for applications that are not compatible with static phase converters (see yellow box above). Rotary phase converters are more efficient, operate at full power, and outperform and outlast static phase converters! Please call toll free 1-(***)-743-6832. Learn More > PLEASE READ SIZING INSTRUCTIONS CAREFULLY OR CALL 1-(***)-743-6832 FOR ASSISTANCE. ALL of the following conditions must be met: Static phase converter must electrically see a 3-phase motor — connections through contactors are okay, but through transformers are not Controls are okay if they all run from lines 1and 2 — Control transformers are okay if tapped from lines 1 and 2 (reverse must also use lines 1 and 2) Typical starting times under 3 seconds Recommended 5 minute cool down between starts Not recommended for heavy or complex loads. When using a 1700-1800 rpm modern T-frame motor, the horsepower of the load should fall within the horsepower rating of the phase converter. For use with motors other than 1700-1800 T-frame motors, use the weight of the motor, and consult the chart on the right -> *Use for motors other than 1700-1800 RPM T-frame. **Use for 1700-1800 RPM modern T-frame motors. The internal circuit in the static phase converter allows external capacitance to be added or subtracted, which is easily done from the terminal strip in the wiring compartment. This allows the converter to be upgraded to run a larger machine, or downgraded to run a smaller machine. The variable capacitance system is so flexible, that all of the internal capacitors can even be bypassed to add in run capacitors for extremely long start cycles. No other static phase converter is this flexible. GENTEC American Rotary's AutoLinkTM Sensor automatically determines when your machine is turned on. The static phase converter is wired in before the machine switch, so it is not necessary to tamper with the machines internal wiring. Simply install the static phase converter between the circuit breaker and the machine. Exclusive DataLinkTM Technology advances performance by offering real-time component status and diagnostics. Aggressive Capacitive Starting Each GENTEC static phase converter has five different mounting configurations built in so that you don’t have to compromise when mounting. Mounting hardware is included, as well as diagrams that show the different positions. Forget the wires! We have included oversized, easy to use terminal blocks labeled for easy hook up. The terminal blocks are housed in an oversized conduit box with pre-punched knockouts for quick and easy installation. Rotary Phase Converters: Save Money! Rotary phase converters outperform and outlast Static phase converters - and protect your equipment! Learn More > Toll free 1-888-7GENTEC for assistance! All photography herein is protected and may not be altered or duplicated. Copyright 2007 GENTEC American Rotary (all content is the responsibility of the poster) |
