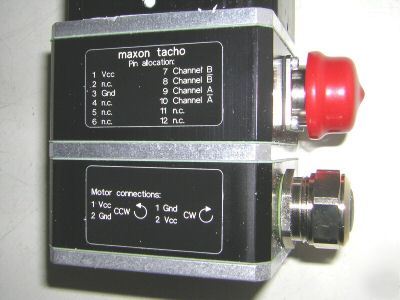

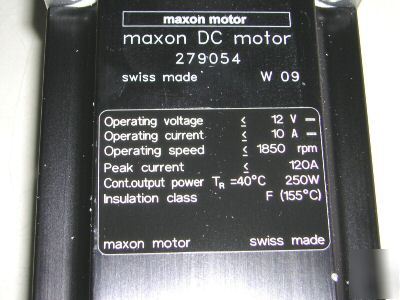

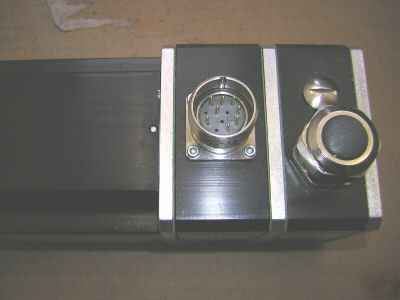

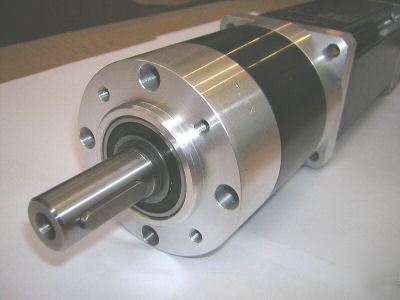

* MAXON DC MOTOR RE 75 + GEARHEAD * THE ITEM IS IN NEW CONDITION * RE 75, 75 mm, Graphite Brushes, 250 Watt * INSULATION CLASS F (155 C) Values at nominal voltage 118819 5. Nominal torque (max. continuous torque) mNm 551 6. Nominal current (max. continuous current) A 10.0 11. Terminal inductance mH 0.0402 12. Torque constant mNm/A 58.1 14. Speed / torque gradient rpm/mNm 0.331 15. Mechanical time constant ms 4.95 Planetary Gearhead GP 81 A 81 mm, 20 - 120 Nm 3. Max. motor shaft diameter mm 14 5. Max. continuous torque Nm 60 6. Intermittently permissible torque at gear output Nm 90 9. Average backlash no load ° 1.5 11. Gearhead length L1* mm 105.7 MOTOR CONNECTIONS - MAXON TACHO 143322 MORE INFORMATION ON THE MOTOR CAN BE FOUND HERE: http://test.maxonmotor.com/docsx/Download/catalog_2007/Pdf/07_084_e.pdf MORE INFORMATION ON THE GEARHEAD CAN BE FOUND HERE: http://test.maxonmotor.com/docsx/Download/catalog_2007/Pdf/07_241_e.pdf MANUFACTURER WEBSITE: http:// /dc_motor.asp (all content is the responsibility of the poster) |
