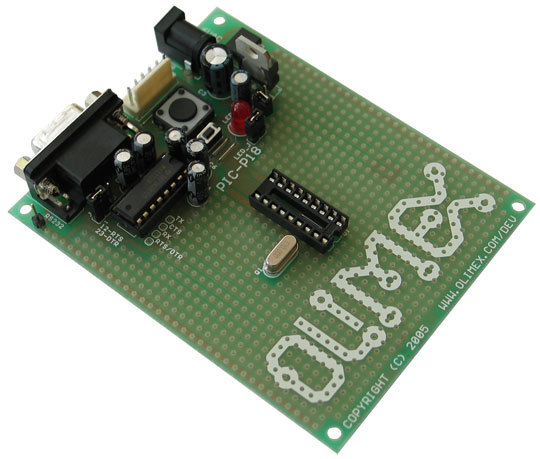

PIC P18B-20MHz 18-pin PIC Protoboard. (For 16F84A, 627, 628, 627A, 628A, 648A, F819, F88, 18F1320 and similar). I also have similar boards for 14, 28 and 40 terminal PICs. Photo of Underside.. There are solder pads associated with each hole. Note that these are assembled. Power requirement is 8-15 VDC. The connector is 2.1 mm ID x 5.5 mm OD, female, center positive. The 20.0 MHz crystal may easily be replaced for operation at other frequencies. * Australia, New Zealand, Singapore - $3.50. (all content is the responsibility of the poster) |
