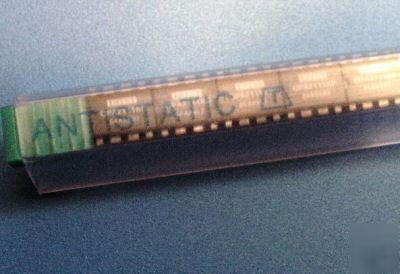

Converts a +3V to +18V input to a corresponding -3V to -18V output using only two low cost capacitors. 40 mA output current. Get the voltages you need to power OpAmps, LCD's, and other parts from low-cell-count battery sources. - 97% Power conversion efficiency - Can combine to get desired voltage/current from battery powered circuits. Can obtain the following functions (see data sheet): VOLTAGE DOUBLER provides twice the input voltage SPLITTING a supply in 2 halves: Positive and negative rails VOLTAGE INVERTER provides an equal and negative voltage to the input voltage PARALLELLING of devices increases output current beyond 40 mA CASCADING devices multiplies output voltage. All circuits described in data sheet US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option. 2-nd item: S&H 75% less than first (or 25% or first) items 3-5: S&H 80% less than first (or 20% or first) items 6-10: S&H 90% less than first (or 10% or first) stock photo may show different part number (all content is the responsibility of the poster) |
