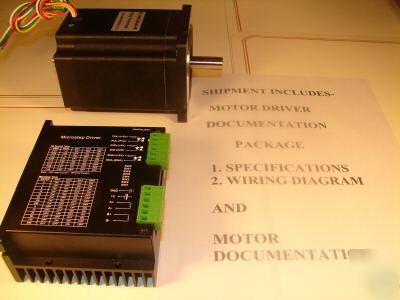

Brand New NEMA 34 1200 oz-in stepper motor Includes documentation and email setup support Suitable for dirving mill tables with 1" to 1-1/8" drive screws Single Shaft Front shaft=1/2" x 1-3/16" with Flat. Back shaft 1/2" x 5/8" no flat Bipolar Volts= 3.0, Amps=6.0, Ohms=0.5, Holding torque=8.5Nm. 0r 1200 oz-in Body Diameter= 85.85 mm or 3.36" Bipolar Driver Specifications Gecko G201 2: Supply Voltage to +80VDC, 7.0A 3: Automatic Idle-Current Reduction 5: Optically Isolated Signal I/O 6: Inaudible 20KHz Chopping Frequency 8: Mixed-Decay Current Control For Less Motor Heating 9. Over-Current, Over-Voltage & Short-Circuit Protection 10: Suitable for 4, 6, 8 wires motors (all content is the responsibility of the poster) |
daniel-young@oklahomaselltoday.com (Daniel Young) for more information. All emails will be forwarded to the poster's actual email address.
