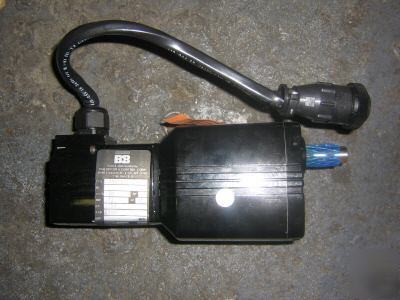

22B-Z Series Parallel Shaft BLDC Gearmotor Model N3660 * Brushless motor for high torque, smaller size, and no maintenance. * Industrial lip type seals on motor and output shafts. * Needle bearings on output shaft for increased radial load capacity and long life. * Permanently lubricated gearing utilizing oil for long life. * Wide reinforced thermoplastic helical gear on input stage for quietness and wide hardened steel spur gears on subsequent stages for high output torque and long life. * Helical pinion accurately cut on motor shaft for maximum strength and minimum noise. 22B-Z Series Parallel Shaft BLDC Motor View a replacement parts list for this series in PDF format. * Brushless motors require a control. * Performance ratings of 115° C winding, 25° C ambient, and no heat sink. * Face mounting is standard. * Encoder model 0940 (can be used only on models that have an accessory shaft). Requires adapter plate model 0993. * Cable model 3983 for connection to chassis controls. * Adaptor plate kit model 0993 for encoders. * "L" bracket kit model 5968 permits alternate mounting. * We stock a full line of speed controls for our brushless motors. 22B-Z Parallel Shaft Brushless DC Gearmotor BLDC Connection [Download PDF] Feel free to contact me with any questions you might have. (all content is the responsibility of the poster) |
