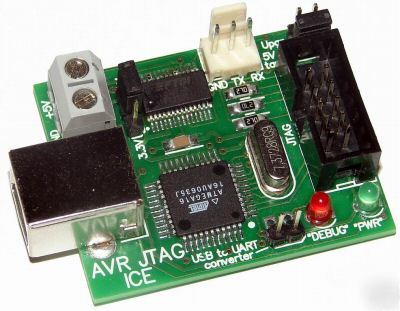

3.3/5V USB AVR JTAG ICE-programmer and debugger with USB to UART converter option The USB AVR JTAG ICE is together with AVR Studio a complete tool for programming and doing On-Chip Debugging on most useful AVR 8-bit RISC microcontrollers with the JTAG interface. A power undertakes directly from USB, that excludes necessity for the external power supply. Also JTAG ICE provides power supply +5V 350mA output for your devices. Windows defines the device as a virtual COM-port. One more pleasant feature is such most often the function necessary to developers as transformation USB in UART TTL - in fact in modern computers can be met all the COM-port less often, and RS232 the interface is still widely used. Certainly this feature will be demanded to developers at debugging the programs using UART the interface. The JTAG ICE uses the standard JTAG interface to enable the user to do programming and real time emulation of the microcontroller while it is running in the target system. The JTAG ICE is supported by AVR Studio. · High quality PCB with green mask and marked text. SMD technology · AVR Studio Compatible. Tested with all AVR Studio version’s, include latest 4.12 and 4.13 versions. · Work with 3-5V target boards (Jumper 3.3V/5V available for choose working voltage) · Emulates all Digital and Analog On-Chip Functions · Complex Breakpoints Like Break on Change of Program Flow · Data and Program Memory Breakpoints · Programming interface to flash, eeprom, fuses and lockbits. · USB Interface to PC for Programming and Control - it is very helpful for computer without RS232 port. After setup of USB drivers on yours PC it will be created virtual COM port. AVR studio accesses to it as to usual COM port. Fully plug and play compatible (after driver installation). · Option of USB to UART converter (UART function enabled by “USB to UART converter†jumper). RX TX lines can use 3.3V or 5V signal voltage · AVR Studio firmware upgradeable, the Update-JTAG manual will allow the device update to most current firmware and support the device list on latest AVR studio development software · LED for debugger Status “ DEBUG†· Compatible with Windows 98 / 2000 / XP JTAG ICE supports all ATMEL microcontrollers with JTAG interface. Currently the JTAGICE supports the following devices (Are most often applied by development engineers): ATmega16(L), ATmega162(L), ATmega169(L or V), ATmega32(L), ATmega323(L), ATmega64(L), ATmega128(L). The list is updated as new versions are released. Please check official ATMEL site for the latest information. Product List - all for simple getting started with JTAG ICE 2. JTAG cable for connect target board to JTAG - latest AVR studio 4.12_SP4 and 4.13 - drivers and utilities for USB port - manuals and instructions for JTAG ICE 2) Bank transfer (bank account in Germany) ___________________________________________________________________________ Attenzione, si avvertono gli eventuali compratori italiani, che al recapito del pacco, si dovranno pagare altri 8..13,44 EURO di spese doganali. (all content is the responsibility of the poster) |
