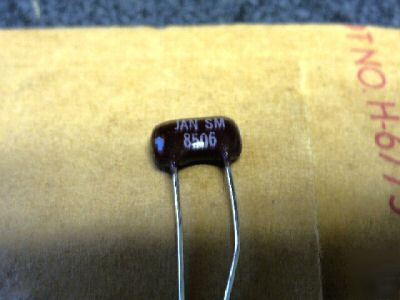

CAPACITANCE VALUE PER SECTION - 20.000 PICOFARADS SINGLE SECTION TOLERANCE RANGE PER SECTION - -5.00 TO 5.00 PERCENT SINGLE SECTION NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION - 500.0 DC SINGLE SECTION TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS - -20.0 TO 100.0 SINGLE SECTION NONDERATED OPERATING TEMP - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM BODY STYLE - 27A W/O MTG FACILITIES TERMINAL(S) ON ONE SURFACE BODY LENGTH - 0.400 INCHES MINIMUM AND 0.450 INCHES MAXIMUM BODY WIDTH - 0.360 INCHES MAXIMUM BODY HEIGHT - 0.090 INCHES MINIMUM AND 0.170 INCHES MAXIMUM SCHEMATIC DIAGRAM DESIGNATOR - 1C NO COMMON OR GROUNDED ELECTRODE(S) TERMINAL TYPE AND QUANTITY - 2 UNINSULATED WIRE LEAD TERMINAL LENGTH - 1.000 INCHES MINIMUM TERMINAL DIAMETER - 0.025 INCHES NOMINAL CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH - 0.225 INCHES NOMINAL INSULATION RESISTANCE AT REFERENCE TEMP - 100000.0 MEGOHMS DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT - 0.0030 RELIABILITY INDICATOR - ESTABLISHED RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.0100 TEST DATA DOCUMENT - 81349-MIL-C-39001 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-C-39001/5 GOVERNMENT SPECIFICATION III TERMINAL SURFACE TREATMENT - SOLDER (NON-CORE DATA) OVERALL LENGTH - 0.400 INCHES MINIMUM AND 0.450 INCHES MAXIMUM III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP - 10000.0 MEGOHMS (NON-CORE DATA) OVERALL HEIGHT - 0.090 INCHES MINIMUM AND 0.170 INCHES MAXIMUM (NON-CORE DATA) OVERALL WIDTH - 0.485 INCHES MAXIMUM DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - CMR05E200J0DR NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-39001/5 (all content is the responsibility of the poster) |
