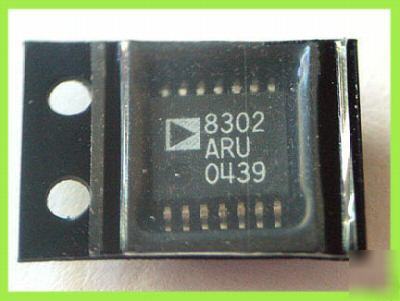

2700 MHz / 50 ohm / 14-lead TSSOP Here you are looking at one piece of AD8302 chip from Analog Devices. It is used to measure gain/loss and phase in receive, transmit and instrumentation application. Operating from 2.7V to 5.5V, the AD8302 has in input dynamic range of 60dB at 50 ohm system up to 2.7GHz operating frequency. It is very popular for homebrewing Vector Network Analyzer, which you can find all these information from the internet. Thanks to all those in the internet who contributes their ideas and thoughts. [Item would be dispatched as "Gift" to individuals registered as private users for no tax purpose. No invoice, therefore, would be attached. Upgrade to registered mail service free of charge. Tracking number will be provided when asked] 1GHz Vector Network Analyzer designed by Robert Lacoste <<< You are welcome to check my other items >>> Merry Christmas and Happy New Year ! (all content is the responsibility of the poster) |
