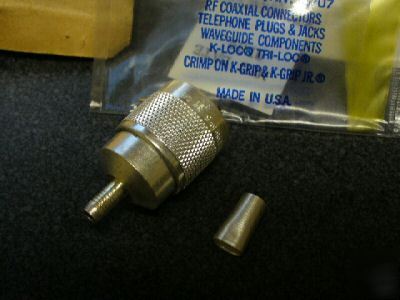

BODY STYLE - 5D STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH - 1.516 INCHES MAXIMUM OVERALL DIAMETER - 0.827 INCHES MAXIMUM CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING THREADED DEVICE TYPE - COUPLING FACILITY THREAD SERIES DESIGNATOR - UNEF NOMINAL THREAD SIZE - 0.625 INCHES SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY CONTACT POSITION ARRANGEMENT STYLE - ABCE N SINGLE MATING END INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 1000.0 SINGLE MATING END SINGLE CONTACT GROUPING RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT TEST DATA DOCUMENT - 81349-MIL-C-39012 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-C-39012/1 GOVERNMENT SPECIFICATION III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-39012/1 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M39012/01-0504 (all content is the responsibility of the poster) |
