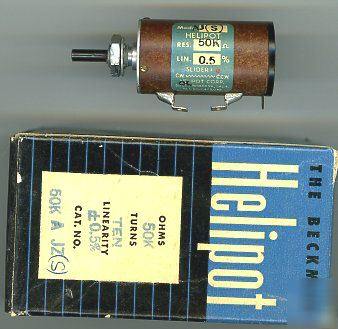

3/4" Diameter 10-Turn Wirewound Precision Potentiometer Standard Resistance Tolerance < 100 Ohms = ±5%, > Minimum Practical Resistance Tolerance ±1% Independent Linearity < 300 Ohms = ±0.50%, ≥ 300 Ohms = ±0.25% Minimum Practical Independent Linearity ±0.15%, >20 Ohms ±0.10%, < 100 Ohms ±0.075%, < 300 Ohms ±0.05%, >300 Ohms Power Rating, Watts 2.0 watts at 40°C derating to 0 at 85°C Input Voltage, Maximum 1,000Vdc not to exceed power rating Dielectric Strength 1,000V rms Insulation Resistance, Minimum 1,000 Megohms Actual Electrical Travel 3600° + 4° – 0° Tap Tolerance > 20 Ohms = ±3°, < 100 Ohms = ±2° < 300 Ohms = ±1.5°, > 300 Ohms = ±1° For more info see this link on a similar product: http:// /pdfs/a.pdf (all content is the responsibility of the poster) |
