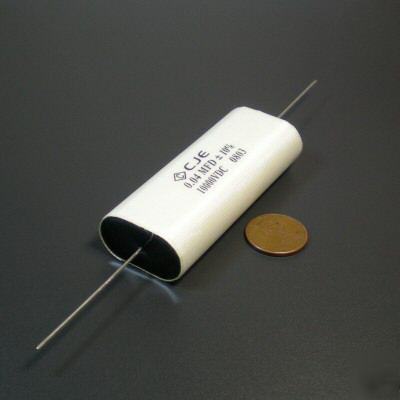

NON-INDUCTIVE CONSTRUCTION OUTER WRAPPED BY INSULATION TAPE AND ENDS SEALED BY EPOXY RESIN, AXIAL TAG. W=72mm, T=17mm, H=29mm, Φ d=1.0mm Operating Temperature : -40°C −+70°C Capacitance Test frequency:1.0±0.02KHz, Test voltage:<1V, Test temperature:20-25°C Withstand Voltage : 1.4Un V, Test time:1 minute Dissipation factor tg δ ≤0.001, Test frequency:1KHz, Test voltage:<1V, Test temperature:20-25°C Insulation Resistance ≥ 30000M Ω, Test voltage:100VDC, Test time:Reading After 1 minute Can provide TRACKING NUMBER, Tracking site for United States, Canada, Japan, Finland, Spain, Switzerland. (all content is the responsibility of the poster) |
