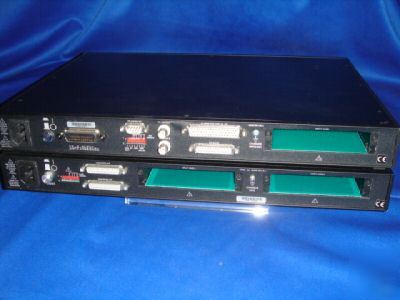

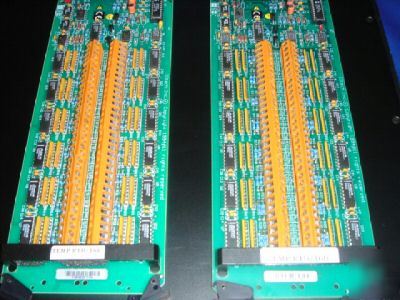

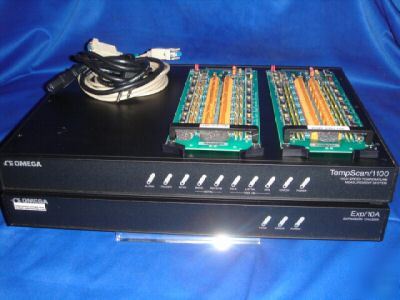

These Omega Temp Scan componants were used in an R & D project and never sold, all componants have been tested and are in perfect working order. The sale consists of the following: * Measures thermocouples, volts, and RTDs at up to 960 channels/s * Accepts optional scanning modules for measuring thermocouples, RTDs, or DC volts * Expandable up to 992 channels * IEEE 488 and RS-232/422 interfaces * 32 TTL digital alarm outputs and 8 TTL-compatible digital inputs * Custom thermocouple types for user-defined linearization tables * Two programmable scan rates for: * pre- and post-trigger sampling * accelerated sampling on-event detection * 128 Kreadings of memory, expandable up to 4 Mreadings * Built-in real-time clock: * synchronizes acquisition to time of day * provides time and date stamping for trend monitoring The TempScan/1100 can each accept one scanning module, which provides all of the required signal conditioning. The EXP10A provides more channels than are available on a single module, you can use the 2-slot Exp/10A expansion chassis. Multiple Exp/10A chassis can be daisy chained to a TempScan/1100 providing additional slots. Regardless of the number of expansion chassis connected, there is only one link to the computer, via its IEEE 488 or serial RS-232 interface. As a result, the TempScan/1100 appears to the PC as one unified multichannel instrument. ONE (1) EXP10A 2-slot expansion chassis is included, & master/slave cable. When attached to the TempScan/1100, each Exp/10A is configurable for 32 or 64 input channels, providing a total expansion capacity of up to 992 channels. TWO (2) RTD/16B RTD Scanning Modules are included. The TempRTD/16B scanning module supports 16 channels of 3- or 4-wire RTDs. Measurements may be designated in units of ËšC, ËšF, ËšK, or ËšR. Chartview or other Software is available from iotech directly. For more information and Complete product and user manuals, PDFs are available from MFG after free registration at: http:// /catalog/temp/tempscan.html and manuals at: ftp://ftp.iotech.com/pub/iotech/outgoing/Manuals/TempScan_MultiScan%20Users%20Manual.pdf (all content is the responsibility of the poster) |
