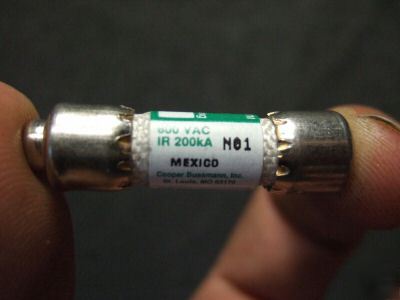

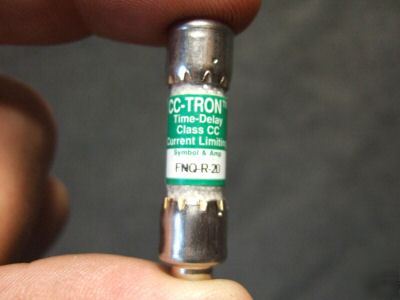

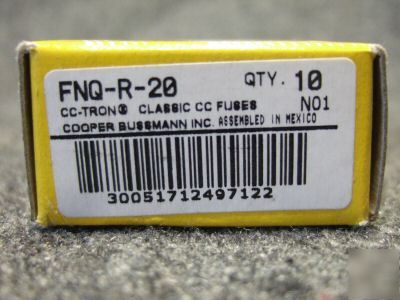

BUSSMANN CC-TRON TIME DELAY FUSES FNQ-R-20 - BOX of 10 * The Bussmann CC-TRON® (FNQ-R) was designed to meet the needs of control circuit transformer protection. * Current-limitation protects down stream components against damaging thermal and magnetic effects of short-circuit currents. * Rejection feature - FNQ-R fuses meet the U.L. 508,paragraph 19.2.4 requirement that control circuit fuses used in equipment listed for use with more than 10,000 ampere available must have an adequate interrupting rating and must be rejection type. * High inrush time-delay - Control circuit transformers can experience inrush currents up to 85 times their full-load current rating. FNQ-R fuses can be sized according to NEC and U.L. requirements and still allow the high inrush currents, with significantly more time-delay than the U.L. minimum value of 12 seconds at 200% for Class CC fuses. * Melamine tube. Albaloy-plated brass endcaps. TIME-DELAY, REJECTION TYPE BRANCH CIRCUIT FUSE CLASS CC PHYSICAL SIZE: 13/32" x 1 1/2" (10.3mm x 38.1mm) CONSTRUCTION: MELAMINE TUBE INTERRUPTING RATING: 200,000A RMS SYM. AGENCY INFORMATION: Std. 248-4, Class CC, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-01, File 53787 · Our business hours are Monday through Friday, 7:00AM to 5:00PM CST. · We will answer e-mails as quickly as possible, but if you send one after 4:30 on Friday afternoon, you may not get a response until Monday morning. · The items listed are described as accurately as possible. · If the item is advertised as non-working, this means that we were unable to get it to work properly. · If the item is advertised as "powers up", that means that it was powered up but no additional testing was done on the unit. · Any pictures are of the actual item unless otherwise indicated above. (all content is the responsibility of the poster) |
