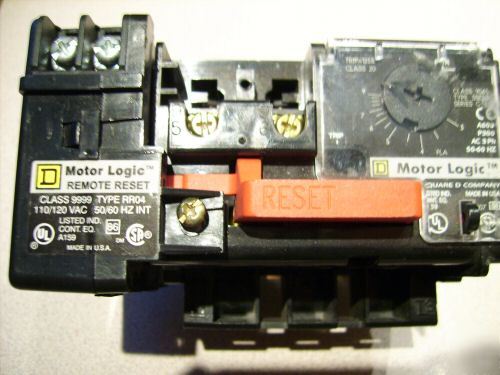

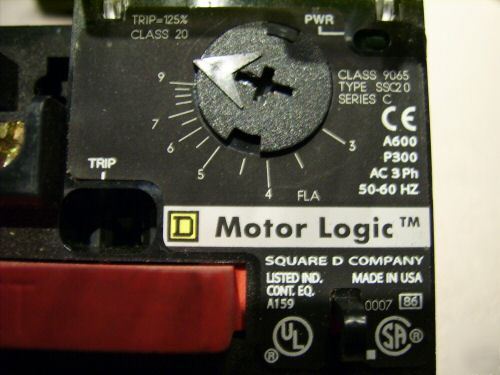

Thermal Overload Relays—NEMA Rated Solid State Overload Relay, Motor Logic® and Motor Logic Plus Class 9065 / Refer to Catalog 9065CT9701 Base Unit relays feature: 3 to 1 adjustment for trip current; phase loss and unbalance protection; direct replacement for Type S melting alloy; and LED power indication. They are ambient insensitive and self–powered. Electrical remote reset is also available. Motor Logic SSOLR are designed to protect 50/60 hertz three-phase AC motors from overload, phase unbalance and phase loss conditions. Open Delta systems or grounded B-phase systems are difficult to balance and could cause the Motor Logic SSOLR to trip. For applications of this nature, it is recommended that bi-metallic overload relays (Form B12) be used. 9999RR04 Remote Reset Module for Motor Logic(TM) Solid-State Overload Relay This module is for resetting a MOTOR LOGIC solid-state overload relay (Class 9065 Type SS, SF, SR and ST) from a remote location. The remote reset module is energized by a 110/120 VAC 50/60 Hz source through a normally-open (N.O.) push button. It allows a tripped, solid-state overload relay to be reset from a distance of up to (all content is the responsibility of the poster) |
