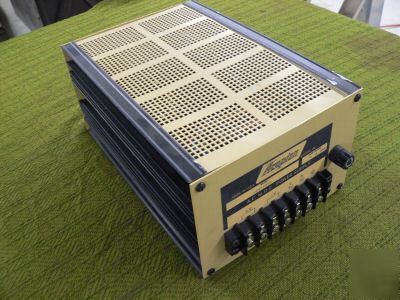

Acopian Power Supply - single output unregulated output model U28Y2000, case size YH11 fused for 6 A 250 Volts AC input, not labelled for input voltage, but rest of panel was 220 volt power. Catalog says normal input is 0-115 volts AC, but can be ordered as 0-250 volts as an option. My guess is that it is the 0-250 volt version. Check the link for details. http:// /pdf/AcopianCatGoldBoxUnreg.pdf • May be used in series or parallel • No derating or heat sinking required Input Voltage: 0-125 VAC, 50-400 Hz, single phase. Output Voltage Adjustment: Adjustable voltage models are provided with a built-in continuously adjustable autotransformer. Load Regulation: The nominal output voltages of single output models, and the maximum rated output voltages for models with wide adjust outputs, are based on 115 VAC input with approximately one-half load. At no load, they will increase by approximately 10%. At full load, they will be reduced by approximately 10%. Line Regulation: Output voltage change due to line change directly proportional to input change. Polarity: Output is floating; either positive or negative terminal may be grounded or floated up to 300 volts above ground. Ambient Operating Temperature: –10 to +65°C. No derating required. Storage Temperature: –55 to +85°C. Terminal Strip Cover: Clips on. To order, add suffix “M†to model number and $5.00 to price. 230 Volt Input: Provision for inputs of 0-250 VAC, 50-400 Hz, replacing the standard 0-125 VAC input voltage range, is available on most models. Contact factory for information. (all content is the responsibility of the poster) |
