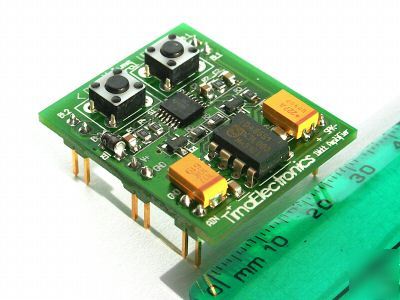

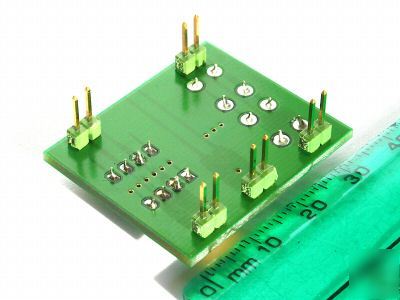

Modern, compact surface mount design and RoHS compliant. The amplifier is available only in pre-built form, but comes with a layout diagram and schematic. The audio amplifier does not come with a loudspeaker, but you will be able to source your own 8-Ohm loudspeaker through your favourite electronics distributor. The features are: * Bridge Tied Load (BTL) – Direct Differential Drive of the speaker removes the need for large AC coupling capacitors. * Electronic Volume Control. * Surface mount - small size. * Suitable for building on a breadboard, or mounting in a box - button pins allow buttons to mount externally on a box with length of wire. * Maximum volume setting gives a gain of 20dB. * Has maximum output power of 1 Watt with 5V supply and 8-Ohm loudspeaker. * Designed around PHILIPS TDA8551. * Maximum supply voltage 5.5V. Each module is encased in black anti-static foam, to prevent the IC's from being damaged. The audio module is an original design by Tirna Electronics Ltd. The Intellectual Property Rights (IPR) of this design remain with Tirna. (all content is the responsibility of the poster) |
