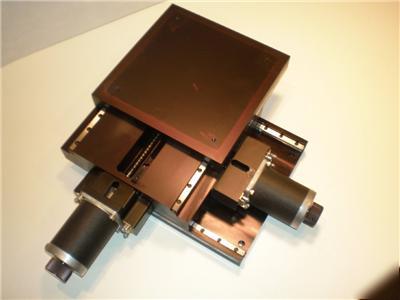

Danaher NEAT XY Linear Table 6” Range XYR-8080 Includes built in limit switches 2 ea. Rapid Syn 23D-6209AD Stepper motors 2 ea. OMS MD10A Microstepping drivers The leadscrew is paired with a specially designed anti-backlash friction nut, which provides excellent repeatability, typically less than ±2 microns (unloaded), and fast settling. Crossed roller ways provide accurate linear motion, together with high load capacity and stiffness. Their operation is very similar to that of ball ways. Two V-ways replace the four ground rods, and a set of cylindrical rollers replace the steel balls. The resulting line contact provides a much higher load capacity than the four point contact of ball ways. The V-ways and rollers, which define the linear motion, are precision ground using tool steel hardened to Rockwell C 60-64. Due to the averaging characteristics of the line contact inherent in crossed roller ways, run-out in the motion of crossed roller ways is generally below that found in ball ways. SPECIFICATIONS XYR-4040 XYR-6060 XYR-8080 XYR-1010 * Leadscrew Accuracy (μm) 75 * Flatness & Straightness (μm) 15 * Orthogonality (arc-seconds) 50 * Pitch & Yaw (arc-seconds) 25 * Maximum Leadscrew Speed (rps) 15 * Moving Mass (kg) Upper Axis 1.7 * Leadscrew Lead (inch) 0.20 See manufacturers website for additional information: http://neat.com/products/xy/pdf/xyrseries.pdf The MD10A microstepping motor driver modules are designed to run hybrid permanent magnet step motors. The MD10A can drive motors with current ratings between 0.75 and 7.2 amps per phase, while the MH10 can operate motors from 1.5 to 14 amps per phase. Motor current regulation is achieved by a high efficiency pulse width modulator (PWM) circuit using power MOSFETs. This results in a cooler running motor with less wasted energy. See manufacturers website for additional information: http:// /media/drivers.pdf Please call us at (***) 640-7709 if you have any questions. (all content is the responsibility of the poster) |
