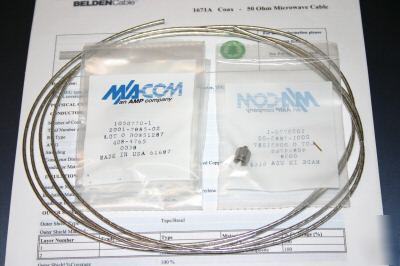

On offer is a pack of 2metres long BELDEN 1671a MICROWAVE 50 ohm coax...full details can be found on the Belden CDT website but briefly it is 'RG-405u Type 24 awg solid .020" silver plated copper covered steel conductor,TFE teflon insulation,copper-tin composite shield (100% coverage),unjacketed coax cable.' Also included are 2 x Ma-com SMA plugs to fit and data..this is the more flexible version of the usual copper pipe type RG405/u Semi rigid coax for SHF connections and couplings etc. IT IS BRAND NEW and unused...longer lenghts are available...more SMA plugs are available. Attn...at 1 GHZ is 22.2 db per 100 feet at5 GHZ 54.9 db per 100 feet at 20 GHZ 120 db per 100 feet... Power rating.. at 1 Ghz is 119 watts 5 Ghz....46 watts 20 Ghz .. 20 watts Max op voltage....Non UL...1,500v RMS Overall Non Dia is .085 in (all content is the responsibility of the poster) |
