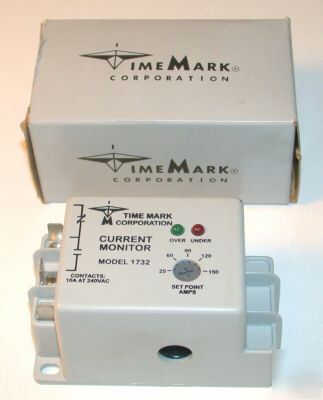

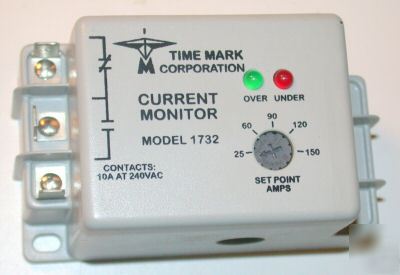

NEW TIME MARK CORPORATION CURRENT MONITOR MODEL# 1732 The Model 1732 AC Current Monitor is a single setpoint current monitor. It can be used to detect either over current or under current, depending on whether the trip point is set above or below the input current. Dual LED indicators on the front or top of the unit give a clear visual reference for a fault condition. The Model 1732 generates it’s operating voltage from the monitored current line, so no external power supply is required. A current greater than 25 amps is needed to energize the internal relay. The maximum current set point is 150 amps. The Model 1732 is not frequency sensitive, and can be used on AC currents from 50 to 400 Hz. http:// /dox/pdf/102-1732.pdf I will fully guarantee this item. Thanks for looking! If you have any question on this item please call us at 1-(***)-826-3433 (9 - 5pm Eastern). (all content is the responsibility of the poster) |
