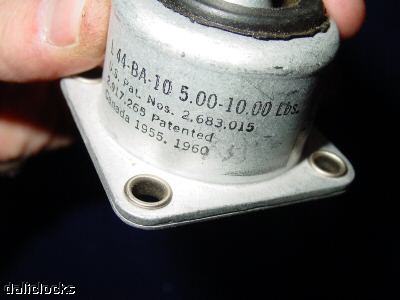

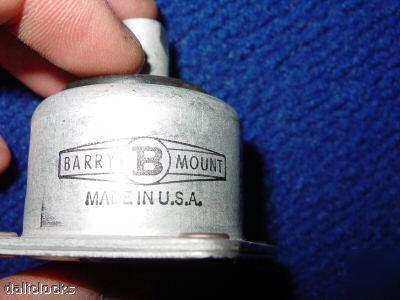

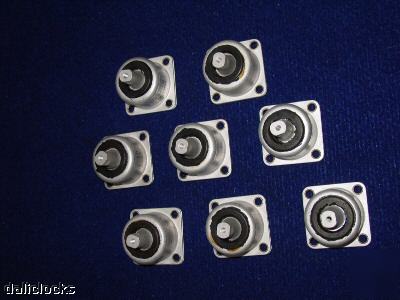

Cup Style Mounts - L Mount Series (L21/L22/L44/L64) Low-frequency, highly damped mounts for a high level of vibration isolation. Barry L-Mounts increase equipment reliability and extend component-life by providing isolation for frequencies as low as 10 Hertz and exhibiting low transmissibility at resonance (below 2.5) with .60" double amplitude vibratory input. * Avionic equipment in propeller driven aircraft * Sensitive instrumentation and medical equipment * Stationary applications where cost effective, low frequency isolation is required * Isolation performance maintained in attitudes up to 10° from the horizontal * Low ratio of horizontal and vertical stiffness which holds transmissibility in rocking modes to unusually low magnitudes * Meets safety requirements of MIL-E-5400 (30G 11ms half sine pulse) * Operating temperature ranges of -67°F to +250°F (-55°C to +120°C). * Meets vibration and shock requirements of MIL-C-172C. * Axial to radial stiffness of 4:1 The pictures you see are of the mad expensive high end Barry Mounts you will get. Local pickup is free in Buffalo, NY area. Feel free to email for details. Thank you very much for considering our item. Joseph and Andrew from DaliClocks (all content is the responsibility of the poster) |
