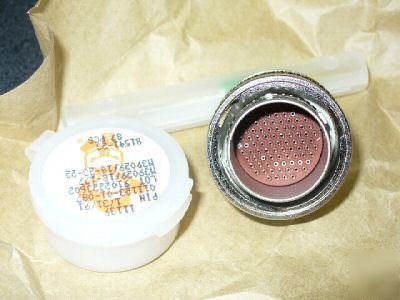

BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH - 1.277 INCHES MINIMUM AND 1.327 INCHES MAXIMUM OVERALL DIAMETER - 1.455 INCHES MINIMUM AND 1.475 INCHES MAXIMUM CONNECTOR LOCKING METHOD - BAYONET SLOT THREADED DEVICE TYPE - BACK SHELL NOMINAL THREAD SIZE - 1.125 INCHES SHELL MATERIAL - ALUMINUM ALLOY SHELL SURFACE TREATMENT - NICKEL SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-C-26074,CLASS III,GRADE A MIL SPEC SINGLE TREATMENT RESPONSE POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY INSERT POSITION IN DEG - 0.0 AND 80.0 AND 142.0 AND 196.0 AND 293.0 CONTACT POSITION ARRANGEMENT STYLE - DQAA 18-85 SINGLE MATING END INCLUDED CONTACT QUANTITY - 85 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 1,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND MOISTURE PROOF AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION PROOF AND FUNGUS RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT TEST DATA DOCUMENT - 81349-MIL-C-81511 SPECIFICATION SPECIFICATION/STANDARD DATA - 81349-MIL-C-81511/46 GOVERNMENT SPECIFICATION III OPERATING TEMP RATING - -65.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM III PRECIOUS MATERIAL AND WEIGHT - 0.085 GOLD GRAINS, TROY III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-81511/46 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M81511/46FF01P1 (all content is the responsibility of the poster) |
