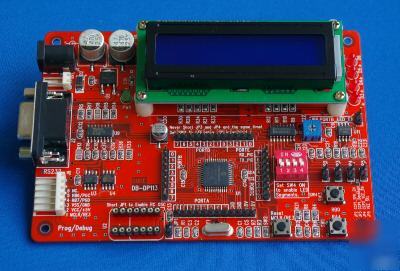

Your Homeland Electronics Store Hybrid of PIC18F4520 Dem2PLUS and Low Power Demo Board * PIC 18F4520-I/PT microcontroller, it may be replaced by PIC18LF4520 or 16F877A. * RS-232 female socket, could be connected to PC or Sure Electronics’ GPS Demo board directly, source code provided. * 6 pin ICD/ICSP socket, DIP pin type. * 3 function keys connect to RA4, RB0 and RE3. Normally could be use as keypads or MCLR/Reset (RE3). * 1 Power indicator (Green). 4 red indicators connect to RB0-3. They could be open from the main circuit by removing jumper from JP6. * 24C04/24LC04 IIC EEPROM on board. * 16*2 character LCD module on board and could be easily removed. 7 segments LED, 4 digits pre-installed, could work easily by remove LCD module and short DP0-3 of SW4. * LM75 IIC digital temperature sensor. * LM358 dual OP-Amps, used as low pass filter for LCD module contrast adjust. ULN2003 darlington transistors array, used to drive LED segments and speaker. The development board comes with a 16x2 LCD with blue backlight.It is a low-cost development kit and easy to be used. Hybrid of PIC18F4520 Dem2PLUS and Low Power Demo Board DC 5V +/- 0.25V after regulated Maximum Tested Baud Rate on RS232 Port Clone Microchip Development Programmer PIC KIT2 MPLAB IDE ICD2 Debugger/Programmer Board Click picture below to find out more interesting boards. (all content is the responsibility of the poster) |
