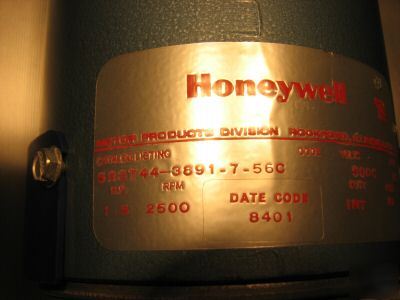

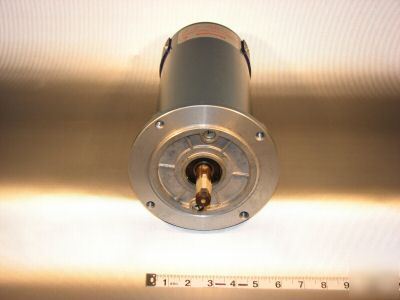

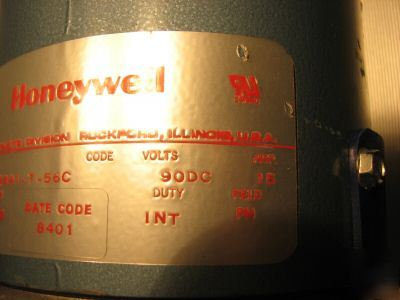

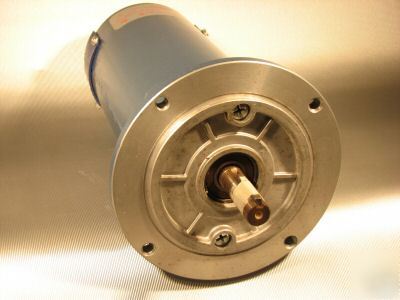

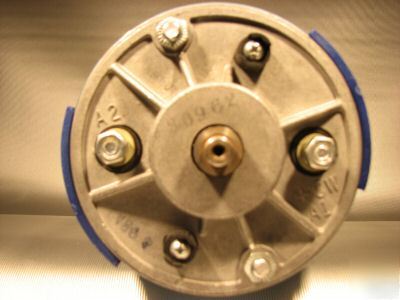

HONEYWELL 90 VOLT DC INDUSTRIAL MOTOR 1.5 HP 2500 RPM THIS MOTOR IS NEW OLD STOCK. IT MEASURES 11-3/4 INCHES FROM THE 56C MOUNTING FACE TO THE TERMINAL END. THE DIAMETER OF THE MOTOR IS 4-1/2 INCHES. THE 3/8 INCH THREADED HOLES ARE ON 4-1/8 INCH CENTERS. THE SHAFT IS 5/8 INCHES IN DIAMETER AND IS 2 INCHES LONG. 90 VDC / 15 AMPS / 1-1/2 HP / 2500 RPM / INT. DUTY THESE WERE ORIGINALLY USED ON A BRAKE LATHE SET-UP. THIS IS A STRONG RUNNING, TESTED MOTOR. I HAVE SEVERAL OF THESE I WILL BE LISTING IN THE FOLLOWING WEEKS. IF YOU CAN USE ONE, DON'T MISS YOUR CHANCE. I WAS ASKED TO CHECK THE OUTPUT OF THESE MOTORS FOR USE AS A WIND GENERATOR. TURNING THE MOTOR AT 500 RPM, IT PRODUCED 16 VDC. (VERIFIED WITH A LASER TACH AND A VOM). AT 625 RPM, THE OUTPUT IS 20 VDC. I WAS INFORMED THAT THIS PM MOTOR WOULD MAKE A GOOD WIND GENERATION MOTOR. THANKS FOR LOOKING. PLEASE CHECK OUT MY OTHER ITEMS. (all content is the responsibility of the poster) |
