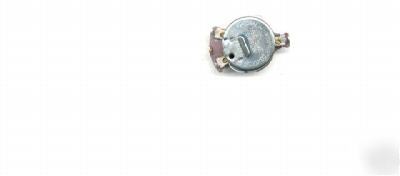

Part Number: Clarostat Clarostat A47F1-3MEG .5W ........................................... BUSHING: N = standard ;L = locking switch; S = panel & shaft seal ; Temperature & Moisture Characteristics: Y = as per MIL-R-94 SHAFT STYLE: S = slotted ; F = flatted SHAFT LENGTH: L = 3/8"; B = 1/2"; A = 5/8"; D = 7/8"; RESISTANCE VALUE: total resistance value in : first two digits significant, third digit = number of zeroes TAPER & TOLERANCE: A = linear 10% ; B = linear 20%; C = logarithmic 10%; D = logarithmic 20%; E = reverse logarithmic 10%; F = reverse logarithmic 20% NOTE: not all part number combinations are valid ............................ Commercial Part numbers SERIES: S = series S ; blank = standard BUSHING: L = locking ;W = panel & shaft seal BUSHING LENGTH: blank = 1/4" ; 6 = 3/8" TAPER:U = linear; A = logarithmic; B = reverse logarithmic RESISTANCE VALUE:total resistance value in : first two digits significant, third digit = number of zeroes TOLERANCE : 1 = 10% of nominal ; 2 = 20% of nominal SHAFT STYLE:R = round ;S = slotted ;F = flatted SHAFT LENGTH:16 = 1/2" ;20 = 5/8";24 = 3/4";28 = 7/8";32 = 1";36 = 1 1/8" NOTE: not all part number combinations are valid ............................... .................................. SU S28 ; SU S12 ; SLU S20 ; SLU S28 RV6NAYSD A ; RV6NAYSL A ; RV6LAYSA A ; RV6LAYSD A 392M / 382C3 ; 392M / 382C4 ; 392M / 382C2 ; 393M / 382C5 WA2G056S UA ; WA2G024S UA WA2L040S UC ; WA2L056S UC WA2G056S ; UA WA2G024S ; UA WA2L040S UC; WA2L056S UC; ............................................................. The above information is the result of my research and is subject to error; please do your own researches, if you disagree, let me know. ...............................................Be sure to add me to your favorites list!Check out my other items!My Stores Logo (all content is the responsibility of the poster) |
